Vickers Hardness Test Machine, Motorized Superficial Rockwell & Vickers Hardness Tester HD9-45

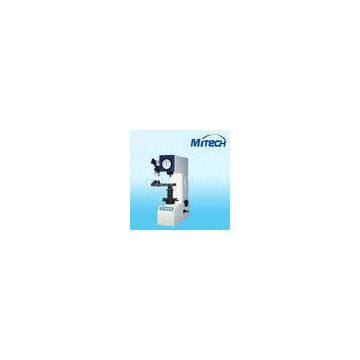

HD9-45 Motorized Superficial Rockwell & Vickers Hardness Tester
Description:
HD9-45 Motorized Superficial Rockwell & Vickers Hardness Tester with 6 steps testing force is able to meet the needs of superficial Rockwell & Vickers hardness tests. Testing force can be loaded, kept and unloaded automatically. Therefore the tester is easy to use and widely welcomed by many users. (The present instrument can be reformed specially to measure Brinell hardness value for aluminum products according to user\'s special requirement.)
Applications:
Steel, surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
Specifications:
|
Rockwell Scales Testing Force |
HR15N, HR30N,,HR45N,HR15T, HR30T,,HR45T 15kgf (147.1N), 30kgf (294.2N),45kgf(441.3N) |
|
Vickers Scales Testing Force |
HV5,HV10,HV20,HV30 5kgf (49.03N),10kgf (98.07N),20kgf (196.1N),30kgf (294.2N) |
|
Indication of Hardness Value |
Superficial Rockwell:Dial Vickers:Measuring Microscope |
|
Amplification of Microscope |
75X,150X |
|
Duration Time |
1~60sec |
|
Overall Dimension |
520×240×700mm(L×W×H) |
|
Net Weight |
80kg |
|
Max Height of Speciment |
Superficial Rockwell: 170mm Vickers:140mm |
|
Max depth of speciments |
165mm |
|
Power supply |
AC220V±5%,50~60Hz |
|
Carried Standard |
GB/T230(1.2) Chinese Standard?? GB/T4340(1.2) Chinese Standard |
|
Standard Accessories |
Rockwell Indenter, Vickers Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Measuring Microscope, Objective, a Set of Inside Lights, Large, Medium and V-shaped Testing Table, Slipped Testing Table, Hardness Blocks for Each Scales, Power Cable |
