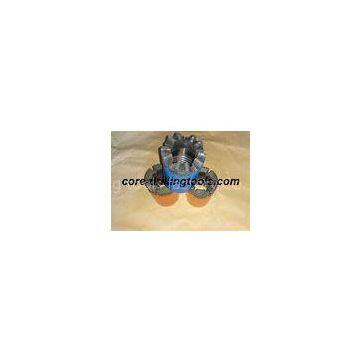

Hollow Core Diamond Drill Bits 75 MM Core Drill Bit Impregnated Casing

Hollow Core Diamond Drill Bits 75 MM Core Drill Bit Impregnated Casing

Description:

The impregnated diamond bits are typically used in the drilling of hard earth layers (hard stratum or formations), and it is quite suitable for breaking and non-breaking of 5-10-level stratum and a variety of abrasive formations.

It mainly consists of diamond, steel body, carbide powder and polycrystalline diamond. The polycrystalline diamond is utilized to avoid too much abrasion of drill bits. The impregnated diamond is synthetic diamond (also called artificial diamond), which costs less but is more suitable to be used in drilling hard formations.

As to the packing, it is first packaged by cartons, and then put into the plywood case.

Specification:

International Standard:
Q series: AQ, BQ, BQ3,NQ, NQ2, NQ3,HQ, HQ3,PQ, PQ3

T series:T36,TB56

TT series:TT46,TT56
T2 series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101

T6 series:T6 76,T6 86,T6 101,T6 116,T6 131,T6 146

B series:B36,B46,,B56,B66,B76,B86,B101,B116,B131,B146

MLC series:NMLC,HMLC

LTK series:LTK48,LTK60
?

Standard of China:
Single tube series: D36, D46, D48, D56, D59, D60, D66, D75, D76, D77, D78, D91, D92, D93, D94, D95, D96, D98, D100, D110, D112, D130, D132,D152, D171, D173, D225, D245, D279, D325
Double tube series: P36, P46, P48, P56, P59, P60, P66, of P75, P76, P77, P91, P94, P110, P130, P150,P152,P202,P219
Rope series: S56, S59, S60, S75, S76, S77, S78, S91, S95, S96, S98 ,S122

Non-standard also can be made as your requirement.

Application

Our impregnated bits matrices can be selected according to the chart below
