Household Appliances Crgo Transformer Lamination Grade UI 45 With Free Samples
USD $ $ 0.626 - $ 0.878/
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Professional UI Lamination Steel Grade UI 28 0.5mm Thickness Cold Rolled Sheet
-
QC Inspection UI25 Electrical Steel Sheet Silicone Sheet 0.5mm Thickness Cold Rolled
-
Grade UI35 Electrical Transformer Laminations , 0.5mm Thickness Silicon Steel Sheet
-
0.5mm Thickness UI Lamination W800 CRNGO Coil Sheet With Coated Surface
-
Transformer Cores CRGO Transformer Lamination , Non Grain Oriented Silicon Steel
-
35WW310 EI Lamination Core Steel Coil Low Iron Loss With Smooth Surface / No Rust
Product Details
| Brand Name | CHUANGJIA | Place of Origin | China | |
| Model Number | UI20-210 |
Product Description
Certification:CE/ISO/SGS

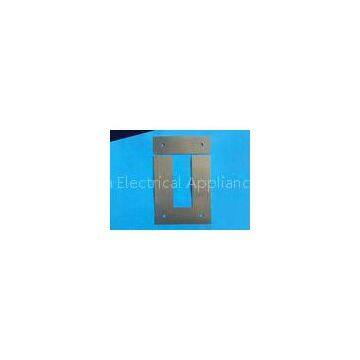

AISI Grade UI45 UI Lamination Steel For Transformer Iron Cores With Quality Inspection Cold Rolled Sheet
Quick Detail:
| Model: | UI20-100 | Standard: | JIS,AISI,ASTM | Type: | The Type of the factory |
| Thickness: | 0.35 - 0.5 mm, /0.3/0.35/0.5mm | Hole Type: | abcde | Place of Origin: | China (Mainland) |
Description:
UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100,and the hole zType a b c d e holes aperture(Φ)
| Dimension:mm (UI Series) | ||||||
| Size | A | B | C | D | E | HOLE(Φ) |
| UI20 | 60 | 20 | 60 | 20 | 20 | 4.5 |
| UI22 | 66 | 22 | 66 | 22 | 22 | 6 |
| UI25 | 75 | 25 | 75 | 25 | 25 | 4.5 |
| UI27 | 81 | 27 | 81 | 27 | 27 | 4.5 |
| UI28 | 84 | 28 | 84 | 28 | 28 | 4.5 |
| UI30 | 90 | 30 | 90 | 30 | 30 | 8 |
| UI32 | 96 | 32 | 96 | 32 | 32 | 8 |
| UI35 | 105 | 35 | 105 | 35 | 35 | 8 |
| UI37 | 111 | 37 | 111 | 37 | 37 | 8 |
| UI38 | 114 | 38 | 114 | 38 | 38 | 8 |
| UI40 | 120 | 40 | 120 | 40 | 40 | 10 |
| UI44 | 132 | 44 | 132 | 44 | 44 | 8 |
| UI45 | 135 | 45 | 135 | 45 | 45 | 10 |
| UI50 | 150 | 50 | 150 | 50 | 50 | 8 |
| UI60 | 180 | 60 | 180 | 60 | 60 | 14 |
| UI70 | 210 | 70 | 210 | 70 | 70 | 14 |
| ? | ? | ? | ? | ? | ? | ? |
UI80
A(240mm)×B80mm×C240mm×D(80mm)×E(80mm)
UI90
A(270mm)×B90mm×C270mm×D(90mm)×E(90mm)
UI100
A(300mm)×B100mm×C300mm×D(100mm)×E(100mm)
Standard:
| ASTM | USA | Ameirican Society of Mechanical Engineers |
| AISI | USA | Acronym of American Iron and Steel Institute |
| JIS | JP | Japanese Industrial Standards |
| DIN | GER | Deutsches Institut für Normung e.V. |
| UNS | USA |
Unified Numbering System |
Applications:
The UI lamination Silicon Steel Lamination type applies to Electrical transformers, current transformers, electronic industry, household appliances and so on.
Chuangjia Electrical Appliance specializes in the production of transformer lamination, transformer core and lamination core, such as EI lamination in standard sizes and non-standard sizes. It has now become a base which is able to manufacture the most completed models of EI lamination in east China.
Packaging&Shipping:
| Packing details | 4500 Ton/Tons per Month |
| Export standard package : bundled wooden box or be required | |
| Port: Shanghai | |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C ,T/T , western union , paypal , alipay |
| Shipping |
DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable |
Problem-Solving Ability&Ability To Pay:
To be honest,mistakes happen in business.But not all the supp
