25 x 3 catwalk decking grates steel bar grating for sale

Steel Grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other features. The hot dipped zinc coating gives the product excellent anti-corrosion.

Specification:

Material: low carbon steel Q235; stainless 301, 304, 316

Cross bar diameter: 6mm

Bearing bar dimension: 25*3mm, 30*3mm; 30*5mm; 40*5mm; 50*5mm; etc

Cross bar spacing: 24--200mm

Bearing barspacing: 15mm; 25mm; 30mm; 40mm; 50mm; 60mm; 90mm,etc

Span: 1000mm; 1500mm; etc

Width: 500mm; 750mm; 1000mm; etc

Surface treatment: hot dipped galvanized; paint; untreat.

Tolerance: The allowed deviation of length is ±5mm, and the allowed deviation of width is ±5 mm.

Features:

1) Corrosion resistance

2) fire resistance

3) slip resistance

4) Impact resistance

5) UV protected

6) Easy fabrication

7) Easy maintenance

8) Cost effective

9) Longevity

10) Aesthetically appealing

11) Large range mesh sizes and thickness

Applications:

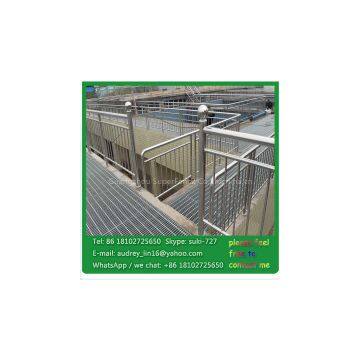

Steel bar grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores.
