Home > Products > AC DC USB Travel Charger > High Efficiency 12W AC DC USB Travel Charger With Ultrasonic Lamination

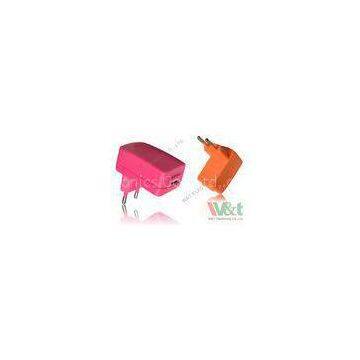

High Efficiency 12W AC DC USB Travel Charger With Ultrasonic Lamination

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	W&T		Place of Origin	China
Model Number	W&T-AD12W-G

Product Description

Delivery Time:15-30 days
Certification:PSE UL CE GS EK FCC CB BS

USB Wall Charger, Input voltage: 100V-240V AC, Output power: 6~12W Output Voltage:3-24VDC ,Output Current 300ma-2A AC Power Adapter, Travel charger

Quick Detail:

12W W&T USB Series, AC/DC Charger, Input voltage: 100V-240V AC, 50/60Hz Range voltage: 86V-265V AC, 47-63Hz Output power: 6~12W Output voltage: DC 3.00V ~ 24.0V Output current range: 300MA~2000MA Output voltage Ripple & Noise: Output voltage 1% MAX Efficiency: 70% MIn M.T.B.F: 50000H Plug in: UK, US, EU, AUS, JP and KC Plug??

Competitive Advantage:

High efficiency power, High Reliability (Ultra low no-load /standby power consumption)

Ultrasonic Lamination

Natural Cooling

Meets \"ENERGY STAR\" program requirement

Over voltage protection

Over load & short circuit protection

100% full load burn-in test

Energy Efficiency: Efficiency level V

Meet CEC, Reach?and MEPS standard

Rohs compliant

Safety:
PSE UL CUL CE GS?KC FCC TUV ?CB BS?

Application:

It’s?suitable?for?an?extremely?wide?range?of?applications,?including:

?? mobile phone, GPS, interphone, walkie talkie, intercom

??Li-lon/ Ni-mh/ Ni-hydrogen/ Lead-acid battery
??Bluetooth speaker

??electric torch, flashlight
??MP3,MP4,MP5,
??Digital camera

??Electric toy and portable medical products charge
??Electric tools and consumer electronics products charge
??Electric cars and communication terminal equipment product charge
??Consumption electronic products
??Tester machine and industrial machine
??Toy and lighting products
??Digital product and radio device
??Medical and exercise device or equipment

Specification:?

INPUT	Voltage	90-264VAC universal full range
Frequency	47-63Hz
Current	＜0.5A@100V AC input, full load condition
Inrush Current	＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient
Leakage Current	＜0.5A@ 264V AC input
OUTPUT	PART NO.	AD12WGX42	AD12WXG05	AD12WGX06
Voltage	0-4.2V	0-5V	0-6.0V
Max Load	0-2.1A	0-2.1A	0-2.0A
Output Tolerance	±5%	±5%	±5%
Ripple Noise(MAX)	50mV	50mV	70mV
Efficiency(MIN)	≥65%	≥65%	≥70%
Output MAX	10W	12W	12W
