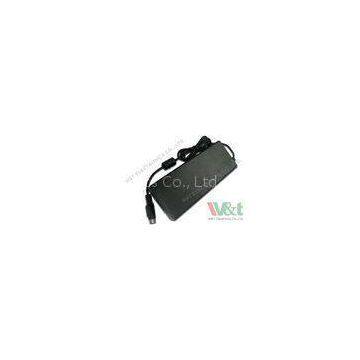

90W - 120W SMPS Desktop AC DC Power Adapter Black PSE UL FCC

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	W&T		Place of Origin	China
Model Number	W&T-AD120W-A

Product Description

Delivery Time:15-30 days
Certification:PSE UL CE GS EK FCC CB BS

Desktop AC to DC Power Adapters , CEC V / EUP 2011 / MEPS V , 90W-120W SMPS
?

Quick Detail:
?

90-120W Series Desktop AC/DC Universal Adapter Benchtop Switching Power Adapter worldwide use 100-240VAC input Output Voltage: Single output 12V 15V 16V 18V 19V 20V 24V 36V 48V Output Current: 2A-10A Output voltage Ripple & Noise: Ouput Voltage 2% Max Eficiency: 88% MIN M.T.B.F.:50000H IEC 320-C6/C8/C14 AC Inlet

?
Safety: CE, GS, KC, PSE, UL, FCC
?
?

Competitive Advantage:?

?
High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC and MEPS standard
?

?
Application:??
?
?
It’s?suitable?for?an?extremely?wide?range?of?applications,?including:
?
? Note-book, Monitor, LCD/LED TV (19V, 6.3A )
? Hard disk video, Wireless products, Communication terminal
?CCTV, Security and Access Control industries (24V 9.6A, 12V 10A , 24V 5A)
? Portable Printer, scanner, CD/DVD,
?Consumption electronic products
?Toy and lighting products
?Tester machine and industrial machine
?Digital product and radio device
?Medical and exercise device or equipment
?Small Household?appliance
?
?

Datasheet spec:
?
?

INPUT	Voltage	90-264VAC universal full range
Frequency	47-63Hz
Current	＜2.5A@100V AC input, full load condition
Inrush Current	＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient
Leakage Current	＜2.5A@ 264V AC input
OUTPUT	PART NO.	AD120WA05	AD120WA07	AD120WA09	AD120WA12	AD120WA15	AD120WA18	AD120WA24	AD120WA48
Voltage	5V	7V	9V	12V	15V	18V	24V	48V
Max Load	0-11.0A	0-10.0A	0-10.0A	0-10.0A	0-8.0A	0-6.6A	0-5.0A	0-2.5A
Output Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Ripple Noise(MAX)	50mV	70mV	90Mv	120mV	150mV	180mV	240mV	300mV
Efficiency(MIN)	≥65%	≥65%	≥75%	≥80%	≥80%	≥85%
