Home > Products > AC DC USB Travel Charger > AC DC USB Travel Charger Cell Phone Charger Adapter With Argentina Plug , KC FCC TUV

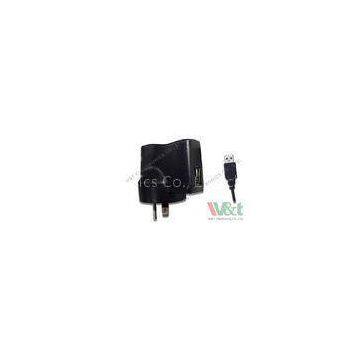

AC DC USB Travel Charger Cell Phone Charger Adapter With Argentina Plug , KC FCC TUV
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
4W 4.2V 800MA - 900MA AC DC USB Travel Charger With EN / IEC 60335 Standard
-
Wall Mounted Tablet PC AC DC USB Travel Charger 5V 2.1A , 9V 1.5A
-
12W AC To DC Universal USB Travel Charger Adapter 300MA - 2000MA
-
High Efficiency 12W AC DC USB Travel Charger With Ultrasonic Lamination
-
3V - 24V AC DC USB Travel Charger Adapters for Android STB
-
100V - 240V AC DC USB Travel Charger For Walkie Talkie / GPS
Product Details
| Brand Name | W&T | Place of Origin | China | |
| Model Number | W&T-CH04W-A |
Product Description
Certification:PSE UL CE GS EK FCC CB BS S-mark
USB AC/DC Charger, USB travel charger, 5V/1,000mA wall Adapter, 5W Rated Power? with Argentina plug
4.2V 800-900MA, 5V 800MA, 7V 600MA, 9V 300MA-400MA
Quick Detail:
05W W&T USB Series, AC/DC Charger, Input voltage: 100V-240V AC, 50/60Hz Range voltage: 86V-265V AC, 47-63Hz Output power: 1~5W Output voltage: DC 3.00V ~ 24.0V Output current range: 200MA~1200MA Output voltage Ripple & Noise: Output voltage 2% MAX Efficiency: 65% MIX Plug in:?Argentina plug?
High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC, Reach?and MEPS standard
Rohs compliant
Safety:
PSE UL CUL CE GS?KC FCC TUV ?CB BS?S-mark
Application:
It’s?suitable?for?an?extremely?wide?range?of?applications,?including:
?? mobile phone, GPS, interphone, walkie talkie, intercom
??Li-lon/ Ni-mh/ Ni-hydrogen/ Lead-acid battery
??Bluetooth speaker
??electric torch, flashlight
??MP3,MP4,MP5,
??Digital camera
??Electric toy and portable medical products charge
??Electric tools and consumer electronics products charge
??Electric cars and communication terminal equipment product charge
??Consumption electronic products
??Tester machine and industrial machine
??Toy and lighting products
??Digital product and radio device
??Medical and exercise device or equipment
Specification:?
|
NPUT |
Voltage |
90-264VAC universal full range |
||||
|
Frequency |
47-63Hz |
|||||
|
Current |
＜0.5A@100V AC input, full load condition |
|||||
|
Inrush Current |
＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient |
|||||
|
Leakage Current |
＜0.5A@ 264V AC input |
|||||
|
OUTPUT |
PART NO. |
AD04WX03 |
AD04WX42 |
AD04WX05 |
AD04WX07 |
AD04WX9? |
|
Voltage |
3V |
4.2V |
5V |
7V |
9V? |
|
|
Max Load |
0-0.8A |
0-0.8A |
0-0.8A |
0-0.6A |
0-0.4A? |
|
|
Output Tolerance |
±5% |
±5% |
±5% |
±5% |
±5%? |
|
|
Ripple Noise(MAX) |
50mV |
50mV |
50mV |
70mV |
90mV? |
|
|
Efficiency(MIN) |
≥65% |
≥65% |
≥65% |
≥65% |
≥75%? |
|
|
Output MAX |
0-4W |
0-4W |
0-4W |
0-4W |
0-4W? |
|
|
PROTECTION |
Over Voltage |
|
