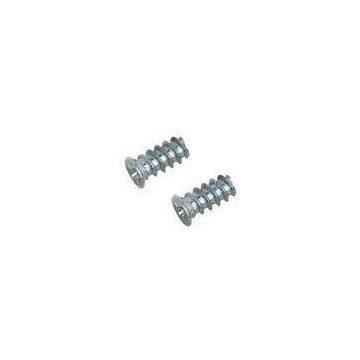

Carbon Steel Flat Head Pozi Drive Euro Screws 15mm ANSI1010 Zinc Plated

Carbon Steel Flat Head Pozi Drive Euro Screws 15mm ANSI1010 Zinc Plated

Flat head Euro Screws are made of steel ANSI 1010 with zinc plated , Phillips drive head and flat point style design for cabinets . Wide thread pitch and self tapping function , do not need full pre-hole .quick installation with less power .

Thread diameter : 4.8 ( #10 )

Length : 10

Head diameter : 9.5

Pitch : 1.5

Hardness : HV 25

Finishing : Blue Zinc

Material : C1010

Pitch for Euro screws are similar tapping threads , but the angle for threads are smaller , the sizes from 2.2 to 6.3 ( thread diameter ) and length is 40 max .

Materials

Euro screws are normally made from carbons steel with property class from 4.8 to 8.8 for different installed requests .

Carbon steel codes

1008 , 1010 , 1018 , 1022 , 1035 , 1045 , SCM 435

Finish

Euro screws are plated zinc with silver color for corrosion resistance

Finish?description?: Blue zinc

Finish?thickness?: 8 um

Environmental protection standard : RoHS ( 2002/95-EC )

Features

1 ,?Quick and easy operation

2 ,?Recycle use

3 ,?Long Service

4 ,?Environmental protection

5 ,?Standard Sizes

6 ,?Harden material

7 ,?Simple and practical structure

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Euro screws
