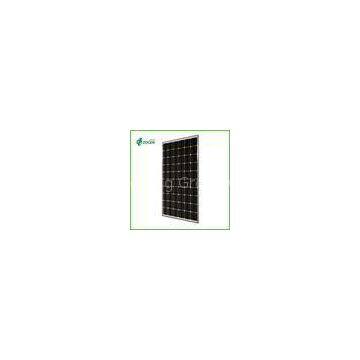

Portable 210W 36 Volt Monocrystalline Solar Panels With Silver Frame

Brand Name	ZOCEN		Place of Origin	China
Model Number	ZCM5-72P

Delivery Time:5-10 days
Certification:CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001

Materials	125*125mm Monocrystalline solar cells	Max.power	210W
Positive tolerance	0~3%	Size	1580*808*35mm
Solar panel efficiency	16.45%	Type	Mono
Bypass Diodes	3pcs 12A	Warranty	25 years
Producion Capacity	200MW / year	Color	Deep blue

Chubb Insured 210W Mono Solar PV Panels, Silver Frame

1> Quick Detail:

Place of Origin: China Brand Name: ZOCEN Model: ZCM5-72P Certificate: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001

2> Description:

Product name: Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance. Tempered Glass: 3.2mm?Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6% EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85% Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm. Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength Junction Box: 3pcs 12A Diode + 90cm 4mm2 Solar Cable Life time: 25 years Power specification at 1kW/m 2, AM 1, 5 Output cable: multi contact connectors Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years. Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO

3> Features:

High Performance Solar Panel Monocrystalline Cells Low Reflection of Sunlight High Light Absorption Functions perfectly under low light or panel being partly shaded Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust ) CHUBB insurance company to guarantee the quality

4> Specifications

I-V Curves Electrical Characteristics

Maximum Power(Pmax)	210
Power Tolerance	±3%
Open Circuit Voltage(Voc)	45.9
Short Circuit Current(Isc)	5.85
Maximum Power Voltage(Vmp)	37.50
Maximum Power Voltage(Imp)	5.6
Module Efficiency	16.45%
Max. System Voltage	1000VDC
Solar Cells	Monocrystalline125*125mm(5 inch)
Cells series	72pcs(6*12)
Bypass Diodes	3pcs 12A
Temperature Coefficients of Pmax	-0.47%/°C
Temperature Coefficients of Voc	-0.35%/°C
Temperature Coefficients of Isc	0.05%/°C
NOTC-Nominal Operating Cell Tepm.	45℃(±2°C)
STC Condition	1000W/m2, AM1.5, 25°C

Engineering Drawing Mechanical Characteristics

Dimension	1580*808*35(mm)
Frame	Anodized Aluminum Alloy
Construction	Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables	4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight	15.5KGS

Packing configuration

Container	20“GP	40“GP	40“HQ
Module dimension	1580*808*35mm
