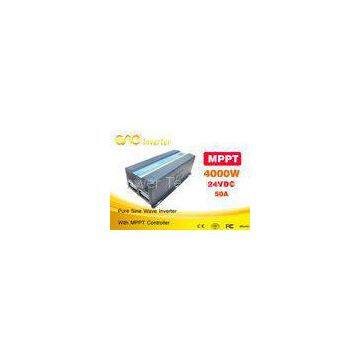

Solar PV inverter off grid DC AC solar power inverter 4000w 24v with MPPT controller
US$ 462 - 485
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
40A 50A 60A PWM Solar Charger Controller Solar Panel Charge Long Life
-
Low frequency pure sine wave dc 12v to ac 220vac 1kv 2kv 3kv 4kv power solar inverter
-
High Frequency Off Grid 2000w Car Power Inverter Solar Power System For Home
-
CE FCC Certificated dc12v to ac220v 230v 5000watt power solar inverter PV inverter
-
IP 32 Solar Charger Controller 50A Intelligent Smart Solar Controller
-
High frequency Car Power Inverter dc 12v 24v 48v to 220v ac solar power inverter 300w 500w 1000w 200
Product Details
| Brand Name | ONE | Place of Origin | China | |
| Model Number | FSI-40224M50 |
Product Description
Certification:CE FCC
Solar PV inverter off grid DC AC solar power inverter 4000w 24v with MPPT controller
FSI 40224
Features:
AC mains input frequency automatic recognition: Our inverter can automatically recognize 50Hz and 60Hz AC input, we guarantee our inverter provides 50Hz AC output from 50Hz AC mains, and provides 60Hz AC output from 60Hz AC mains, to ensure inverter provides normal input and output and to ensure the loading works properly.
Photoelectricity isolation circuitry technology:
It can detect and modulate the pulse width of boost circuit, reduce the EFT(Electric Fast Transient) and raise anti-interference.
Switching power is supplied by independent system
It uses a separate power for a single switch chip, which reduces the interference of pulse and make inverter works stably.
| Model | FSI-102 | FSI-152 | FSI-202 | FSI-302 | FSI-402 | FSI-502 | FSI-602 | |
| Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Peak Power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | |
| Nominal battery voltage | 12/24VDC | 12/24/48VDC | 24VDC/48VDC | |||||
| Input | DC input range | 10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V) | ||||||
| AC Mains input range | 170-275VAC (220/230/240VAC)±4% | |||||||
| AC input frequency | 50Hz: 45-65Hz / 60Hz: 55-65Hz±0.5Hz (50Hz/60Hz automatic recognition) | |||||||
| Protection | Low battery alarm | ≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) alarm | ||||||
| Low battery protection | ≤10VDC (12V) / ≤20VDC (24V) / ≤40VDC (48V) automatic shutdown | |||||||
| High battery alarm | ≥15VDC (12V) / ≥30VDC (24V) / ≥60VDC (48V) alarm | |||||||
| High battery protection | ≥17VDC (12V) / ≥34VDC (24V) / ≥68VDC (48V) automatic shutdown | |||||||
| Over load protection | 110%<loading<150%, shutdown after 60s alarm, loading>150%, shutdown after 20s alarm | |||||||
| High temperature | Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic shutdown | |||||||
| Short circuit protection | Automatic shutdown | |||||||
| Output | Transfer efficiency | ≥90% | ||||||
| Output voltage | (DC battery mode) 220/230/240VAC±2% | |||||||
| Output frequency | (DC battery mode) 60/50Hz±1% | |||||||
| Output wave form | Pure sine wave | |||||||
| Output voltage | (AC mains mode) stable 220/230/240VAC±10% output (built-in AVR stablizer) | |||||||
| AVR output stablizer | AC mains<170VAC±5% swtich to DC battery mode, AC mains>180VAC ±5% return to AC mains mode; | |||||||
| AC mains>275VAC±5% swtich to DC battery mode, AC mains<255VAC ±5% return to AC mains mode; | ||||||||
| The above is for output 220V system reference, 230V/240V output just multiply by percentage | ||||||||
| Output frequency | (AC mains mode) automatic tracing from AC input | |||||||
| Other | Transfer time | ≤5ms | ||||||
| Display | LCD Display with function buttons | |||||||
| Cooling system | Intelligent cooling fan control system | |||||||
| ≤42℃ slow fan, ≥45℃ fast fan | ||||||||
| AC Charger | 7 battery types mode | Gel U.S.A. / Gel European / A.G.M.1 / A.G.M.2 / Sealed lead acid / Open lead acid / Calcium(open) / | ||||||
| Deep sulphation cycle 15.5 for 4 hrs | ||||||||
| AC charging Voltage | 13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V) | |||||||
| AC charging current | 0-35A: 5A / 10A / 20A / 25A / 30A / 35A, 6 stages adjustable option | |||||||
| 3 Stages charging | Boost charging, direct charging, float charging | |||||||
| AC over charge protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm | |||||||
| Working mode (Optional) |
