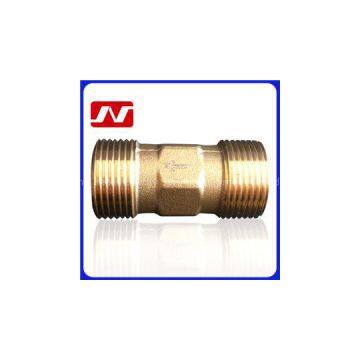

3/4inch Brass 2 Ways Antifreeze Valve

Place of Origin	China

Instruction ManualAntifreeze valveMODEL:BXFD20ANTIFREEZE VALVEWITH FILTERMax. working pressure:10 barAmbient temperature range:-30–90°COpening temperature:4°CClosing temperature:8°CAccuracy:±2°CConnections:G3/4"?or NPT3/4"Body material:BrassThread:Male threadNet weight0.14 KGSGross weight0.15 KGS1.Function：The anti-freeze valve prevents ice build-up in pipe , avoiding possible damage to water storages and pipes in hydraulic, solar and irrigation systems. When below 8℃ water tempraturer operating is reached, it automatically opens so that a minimum quantity of water may flow toward the drain, enabling a small continuous inflow of water; this prevents water from freezing inside the pipe. When the water?temperature increases?to above 8℃?or in the event of contact with warmer water, the opposite action occurs, causing the device to shut off .?2.PerformanceMax. working pressure: 10 barAmbient temperature range: -30–90°COpening temperature: 4°CClosing temperature: 8°CAccuracy: ±2°CConnections:?3/4"?, one inlet –?male thread , one outlet –?male thread3.Operating principleA thermostatic sensor?sensing the water temprature to control the valves closing or opening .When the water?temperature below?8℃. This causes the sensor?to move and open a tiny passage so that water can drain out, this prevents water from freezing inside the pipe. When the temperature below?4 ℃,the valve opened completely. The water will be flow out from the?solar panel . When the temperature above 8℃, the valve will be closed.4.InstallationBefore installing the device, make sure that the system has been flushed and cleaned to remove any traces of dirt that may have accumulated during installation. The antifreeze valve outlet port?must vertical to ground, so as to permit a free and unrestricted downward flow of the water as it drains out. The device must be installed in the points of the circuit at risk of freezing so that the water may flow freely and in order to prevent pipes, storages or components located upstream of the device from freezing. Pipes downstream of the device must be protected from frost if, due to the intervention of the device, the water contained in them remains stagnant without flowing. In the case of exposed outdoor pipes, the installation of a suitable heating cable will provide effective protection.Package size :1.?small carton (mm) : 150*87*52 ,7 pieces antifreeze valve in one small carton .2.?middle carton (mm) : 310*245*130 ,70 pieces antifreeze valve in middle carton .3.?middle carton (mm) : 310*280*200 ,140 pieces antifreeze valve in middle carton .4.?big carton (mm) : 470*325*190 ,210 pieces antifreeze valve in big carton .Trade Term :1.?Country of origin : Shenyang of China2.?Date of delivery : spot or production time 5-45 days .3.?Production capacity : 5000 pieces every month .4.?Port of shipment : the nearest sea port is DALIAN , the nearest air port is SHENYANG .5.?Payment term : spot goods :100%TT , customized products : 30% in advance before production , 70% balance before delivery all the goods .6.?MOQ : 200 pieces7.?Warranty : free warranty in 3 years .
