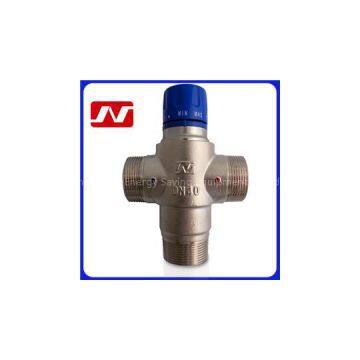

1-1/2inch Brass Male Thread Thermostatic Mixing Valve

Place of Origin	China

1-1/2inch brass male thread thermostatic mixing valveModel:DN40Ideal working pressure0.1-0.5MpaCold water inlet temp.4-29?℃Hot water inlet temp.50-85 ℃Mixed water outlet temp.35-45 ℃ customizedFlow?rate (1 bar pressure drop)133.3 L/minTemp accuracy±2℃Body materialBrass Plated NickelThreadG?1-1/2″ Male ThreadStandardQB2806-2006Net weight1.572 KGSGross weight1.624 KGS1.Technical DataModel:DN40 ?Port size:G1-1/2"a.?Working pressure:0.03-1Mpab.?Ideal working pressure:0.1-0.5Mpac.?Maximum working temperature:≤99 ℃d.?Flow rate(1 bar pressure drop):?133.3 L/minFlow rate for pressure:Knob Temperature :PositionMin1234567MaxTemperature(℃)-30333537394245-2. Materials of Constructiona. Valve body : Brass plated nickelb. Shutter : PPOc. Spring : Stainless steeld. Connection : Inlets-Male thread, Outlet-Male thread3. Usage of TMVsFor wash hand basins, bidets, baths and showers in hospitals, schools, sport and leisure facilities, prisons and other public buildings.4.?Installation Precaution:a.All installations should be carried out by a Licensed Professional.b.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked Cc.?After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 C.d.The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.e.If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.f.?Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation?Package size :1.?big carton (mm) : 500*380*215 , 8 pieces thermostatic mixing valve in one big carton .Trade Term :1.?Country of origin : Shenyang of China2.?Date of delivery : spot or production time 5-45 days .3.?Production capacity : 5000 pieces every month .4.?Port of shipment : the nearest sea port is DALIAN , the nearest air port is SHENYANG .5.?Payment term : spot goods :100%TT , customized products : 30% in advance before production , 70% balance before delivery all the goods .6.?MOQ : 100 pieces7.?Warranty : free warranty in 3 years .
