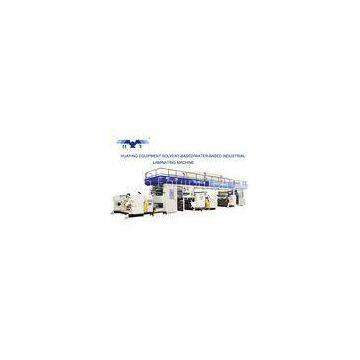

Plastic Film Dry Lamination Machine High Speed Dual Function Solvent-Based

Plastic Film Dry Laminating equipment, working speed 250m/min, dual function, solvent-based, water-based

Quick Details:

? ? ?Summarize and function:

This machine is a newly developed product that is made according to our experience on the laminating machine and the customers’ demands. The first basis metal adopts edge correction material delivering device with auto photo-electricity tracking. Moreover, with magnetic powder tension control, pneumatic back pressure shifting scraper, the oven temperature being controlled automatically and partly, the big cylinder heated by transferring oil, pneumatic control of gluing and laminating as well as the technology of double frequency conversion and speed regulation, this machine is endowed with the characteristics such as high laminating speed, low noise, low air pollution, low energy consumption and stable running, etc. It is used to laminate the material like Al-foil, cellophane and PA that have smooth surface with PP/PE film. The laminated film, with high intensity, waterproof, anti-ventilation, greaseproof, refrigerant and being steamed, is widely used for the package of refrigerant food, dry food, pharmacy and daily commodities.

Core competition:

1. Ladder-shaped wall which is made of high strength cast iron.

2. Oil temperature in composite roll can be automatic control.

3. Length of oven is 8 meters, with sub-4 automatic temperature control circulating air heating.

4. Gear sprocket surface is hardening: HRC48 ~ 52.

5. Material discharge is the magnetic braking, with automatic tension, automatic correcting.

6. Scraper on the glue roller is pneumatic pressure, and ran around 6mm as usual.

7. ?Glue and composite rollers are pneumatic pressure, and pressure is adjustable, as well.

8. Machine with 5 retractable material rollers: 4 are inflatable axis, one common shaft sleeve.

9. Driver of the winding motor is torque motor, and it is good for tension and stability.

Final Products:
