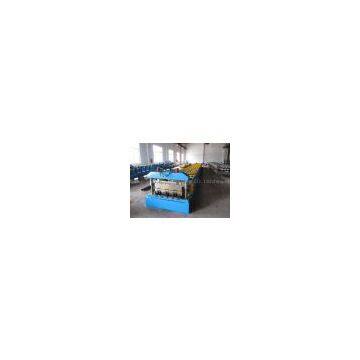

Floor Deck Roll Forming Machine Directly Input The Data on the Touch Screen

Floor Deck Roll Forming Machine Directly Input The Data on the Touch Screen

The metal deck forming machine is aided and optimized by computer. The metal deck produced by this machine has high strength with big wavelength. Used on high buildings , it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economizes steel and cuts down investment accordingly.

·Professional designing for manufactures decking steel.

·Automatically continually manufactures high quality product with PLC.

·Easy operation : Directly Input the data on the touch screen.

·Customers decide the profile of products.

·Saving time and cost owing to high speed running with hydraulic system.

Technical Parameters:?
Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power: 18.5kw
Forming Speed: 10--12m/min
Hydraulic Station Power: 3kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±2mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 60Hz or at buyer’s requirement

Standard Equipment of Machine:?
Passive uncoiler 1pc Guiding equipment 1set?
Rolling forming equipment 1set Main body 1set?
Post-cut equipment 1set Hydraulic station 1pc?
PLC controlling desk 1pc Supporter table 2pc?
Security cover (optional) 1set
