Rolling Shutter Slates Roll Forming Machine with AC380 Power Supplier

Rolling Shutter Slates Roll Forming Machine with AC380 Power Supplier

Rolling Shutter Slats Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles, are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers. Also designed for warehouses, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms.

Our rolling shutters are custom built for each application with many options for your exact needs.?
Rolling Shutter Slats Roll Forming Machine for producing single layer products is consisted of de-coiler, main roll-forming machine, straightening part, PU foam-filled device, cut-to-length tracing cutter, run-out table, etc.

The entire construction of the machine is of steel. The machine is fitted with a number of rolls with forming dies on it, through which a cut strip is passed and in one operation the strip is formed into a desired shape , suitable for making rolling shutters in one insertion. The drive of the machine is by Hobber cut spur gears and the dies rotate in gunmetal bearing having full lubrication arrangement.

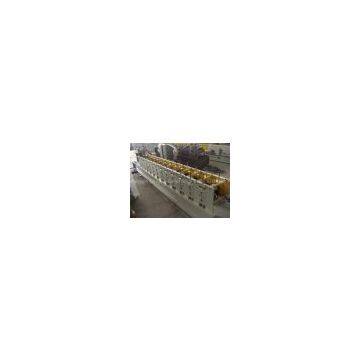

Roll forming line for rolling shutter slats

Line structure

Portal-type frame style, ? 45# steel

Forming Roller Stations:12 Stations

Forming Roller shaft:Φ36mm

Forming rollers:GCr15, Quenching, hardness HRC56-62o

Forming Speed:15 m/min

Main motor:7.5kw

Material of Sheet:Σs≤260Mpa

Feeding material thickness:0.3 to 1.2 mm;

Cutting mode:Automatic control cut-to-length

Power supplier:AC380, 50HZ, 3 PHASE
