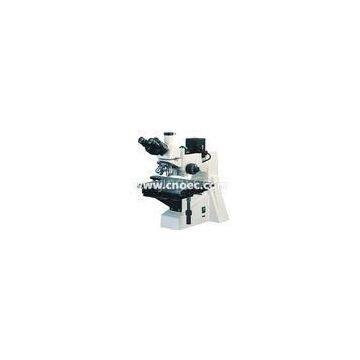

Metallurgical Reflected Light Microscope 50X - 800X A13.0206

FOB Price

US$ $1 - $1 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNOEC, OPTO-EDU		Place of Origin	China
Model Number	A13.0206

Product Description

Delivery Time:5~20 Days
Certification:CE|Rohs

?Metallurgical?Reflected?Light?Microscope?50X?-?800X?A13.0206

Description:

A13.0206 reflected metallurgical microscopes is suitable to observe the microscopeical surfaces of non-transparent object. Equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular head, it has clear and high contrast picture beautiful sculpt.

It is deal instruments in research work in biology, metallography, mineralogy,precision engineering, electronics and etc.

--Plan achromatic objectives with long working distance (no cover glass)
--Large move range mechanical stage, move quickly and slowly as you need
--Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 7μm
--6V 20W halogen lamp, brightness control.
--Trinocular head can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.?

Specifications:

Specification	A	B
Eyepiece	Wide field eypieceWF10X(18mm)	●	●
Objectives	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12, working distance 18.3mm	●	●
Plan achromatic objectives with long working distance (no cover glass) PLL10X/0.25 , working distance 8.9mm	●	●
Plan achromatic objectives with long working distance (no cover glass) PLL20X/0.40, working distance 8.7mm	●	●
Plan achromatic objectives with long working distance (no cover glass) PLL40X/0.60, working distance 3.7mm	●	●
Plan achromatic objectives with long working distance (no cover glass) PLL80X/0.80(Spring), working distance 0.96mm	●	●
Head	Trinocular, Inclination of 30°(Analyzer with field diaphragm to switch)	●	●
Reflected Illumination Unit	6V 20w, halogen lamp, brightness control.	●	●
Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (Y,B,G) filter and frosted filter	●	●
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.002mm.	●	●
Nosepiece	Quintuple (Frontward ball bearing inner locating)	●	●
Stage	Three layer mechanical,size:250x230mm,moving range 154x154mm	●	-
