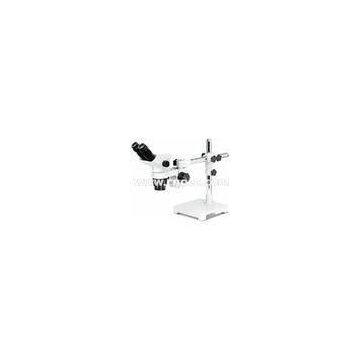

Jewelry Lab Stereo Optical Microscope With 360Rotatable Head , CE A23.0903-STL1

FOB Price

US$ $1 - $1 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNOEC, OPTO-EDU		Place of Origin	China
Model Number	A23.0903-STL1

Product Description

Delivery Time:5~20 Days
Certification:CE|Rohs

Jewelry?Lab?Stereo?Optical?Microscope?With?360°Rotatable?Head?,?CE?A23.0903

Description:

--0.67~4.5x Zoom Lens, with WF10x/22mm Eyepiece,
--Total Optical Magnification 6.7~45x
--Universal Pole Stand To Observe Specimen From Any Direction or Angle.
--Fully Coated Optical System, Sharp & Clear Image

Specifications:

A23.0903-STL1?Zoom?Stereo?Microscope,?0.67x-4.5x?Specification
Head	Brinocular,?45°?Inclined,?360°?Rotatable,?5°?Diopter?Adjustable,? Interpupillary?Adjustment?54~75mm
Zoom?Range	0.67~4.5x
Zoom?Ratio	1:6.5
Eyepiece	WF10x/22mm,?Both?with?Eye-cup
Magnification	6.7~45x,?Up?to?2~225x?with?Auxiliary?Lens
Working?Distance	100mm,?With?Standard?1x?Lens.?Up?to?26~287mm?With?Auxiliary?Lens
Stand	Universal?Pole?Stand?STL1,?To?Observe?Specimen?From?Any?Direction?or?Angle. Vertical?Post?Height?380mm,?Pillar?Size?Dia.32mm, Focusing?Post?Height?104mm,?Pillar?Size?Dia.32mm Horizontal?Adjustment?Range?235mm Stage?Size?23023040mm
Illumination	No?Light?Source
A23.0903-STL1?Zoom?Stereo?Microscope,?0.67x-4.5x?Optional?Accessories
Eyepiece	WF15x/15mm	A51.0923-15
WF20x/10mm	A51.0923-20
WF25x/9mm	A51.0923-25
Auxiliary?Lens	0.3x,?W.D.?287mm	A52.0928-03
0.4x,?W.D.?217mm	A52.0928-04
0.5x,?W.D.?177mm	A52.0928-05
0.75x,?W.D.?117mm	A52.0928-75
1.5x,?W.D.?47mm	A52.0928-15
2.0x,?W.D.?26mm	A52.0928-20
