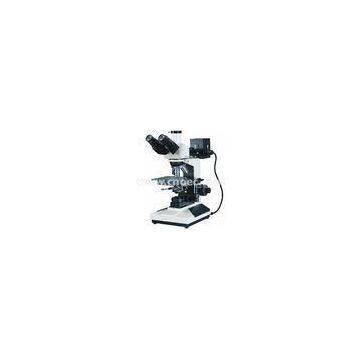

Coaxial Coarse Metallurgical Optical Microscope 100X - 600X A13.0204

FOB Price

US$ $1 - $1 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNOEC, OPTO-EDU		Place of Origin	China
Model Number	A13.0204

Product Description

Delivery Time:5~20 Days
Certification:CE|Rohs

Coaxial?Coarse?Metallurgical?Optical?Microscope?100X?-?600X?A13.0204

Description:

This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.

--Plan achromatic objectives with long working distance (no cover glass)
--Coaxial coarse/fine focusing system with tension adjustable and up stop
--6V 20W halogen lamp with brightness control
--Trinocular head can switch between normal observation and polarizing observation

Specifications:

Specification	A13.0204-A	A13.0204-B
Eyepiece	WF10X(Φ18mm)
Objective	Plan long working distance (no cover glass) PL5x/0.12	Plan long working distance (no cover glass) PL5x/0.12
Plan long working distance (no cover glass) PLL10x/0.25	Plan long working distance (no cover glass) PLL10x/0.25
?	Plan long working distance (no cover glass) PLL20x/0.40
Plan long working distance (no cover glass) PLL40x/0.60	Plan long working distance (no cover glass) PLL40x/0.60
Plan long working distance (no cover glass) PL 60x/0.75 (Springl)	Plan long working distance (no cover glass) PL 60x/0.75 (Springl)
Head	Trinocular, inclination of 30°, analyzer with field diaphragm to switch
Vertical illumination	6V 20W halogen lamp with brightness control
Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and frosted filter
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece	Quadruple back ball bearing inner locating	Quintuple back ball bearing inner locating
Stage	Double layer mechanical, size 185x140mm, moving range 75x40mm

Optional Accessories	Item No.
Eyepiece	Wide field WF16x/11mm	A51.0203-16A
Divding 10x, 0.1mm/Div	A51.0205-10
Objective	Plan long working distance (no cover glass) PLL50x/0.70	A5M.0212-50
Plan long working distance (no cover glass) PLL80x/0.80	A5M.0212-80
Plan long working distance (no cover glass) PLL100x/0.85(Spring)	A5M.0212-100
Plan achromatic (no cover glass) PL100x/1.25	A5M.0234-100
CCD adapter	0.4x	A55.0202-1
0.5x	A55.0202-4
1x	A55.0202-2
0.5x with dividing 0.1mm/Div	A55.0202-3
Photo Adapter	2
