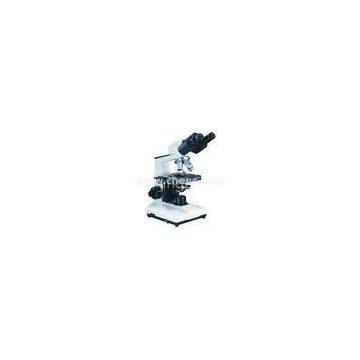

University Student Biological Microscope Polarizing Microscopes , CE Rohs A11.0208

FOB Price

US$ $1 - $1 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNOEC, OPTO-EDU		Place of Origin	China
Model Number	A11.0208

Product Description

Delivery Time:5~20 Days
Certification:CE|Rohs

Student?Laboratory?Biological?Microscope?Binocular?,?CE?Rohs?A11.0208

Quick Detail:

1. Head:Compensation binocular head inclination 30°

2. Eyepiece:WF10X(Φ18mm);WF16X(Φ11mm)

3. Objective:Achromatic 4X/0.10;Achromatic 10X/0.25;

Description:

This microscope is the conveniently operated optical instruments with excellent functions and new patternit is very suitable for usage in medical test,teaching and microobservation in hospitals and schools.

--Infinity optical system available!
--A: coaxial coarse/fine focusing system,

? B:Coaxial coarse/fine focusing system with tension adjustable and up stop
--6V 20W halogen lamp with brightness control

Specifications:

Specification	A11.0208-A	A11.0208-B
Head	Compensation binocular head inclination 30°
Eyepiece	WF10X(Φ18mm)
WF16X(Φ11mm)
Objective	Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System	Coaxial coarse/fine system focus, Minimum division of fine focusing: 2um	Coaxial coarse/fine system focus, Minimum division of fine focusing: 2um With tensional adjustable and limit stopper, base bearing black plastic cap
Nosepiece	Quadruple frontward ball bearing inner locating
Stage	Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser	N.A.1.25? Rack & pinion adjustment
Filter	Blue filter
Frosted filter
Collector	For halogen lamp
Light source	6V 20W halogen lamp with brightness control

Optional Accessories	Item No.
Eyepiece	Divding 10x, 0.1mm/Div	A51.0205-10
Objective	Semi-plan achromatic SP4x/0.10	A52.0202-4
Semi-plan achromatic SP10x/0.25	A52.0202-10
Semi-plan achromatic SP20x/0.40	A52.0202-20
Semi-plan achromatic SP40x/0.65(Spring)	A52.0202-40
Semi-plan achromatic SP100x/1.25(Spring, Oil)	A52.0202-100
Head	Monocular, inclination of 30°	A53.0201-6
Binocular, inclination of 45°	A53.0203-121
Trinocular, inclination of 45°	A53.0204-21
Trinocular, inclination of 30°
