Outdoor High Voltage Heat Shrinkable Termination Kits 35KV 3 - CORES

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YIXIN		Place of Origin	China
Model Number	WSY-35/3.3

Product Description

Delivery Time:15-30 DAYS

35KV 3 - CORES High Voltage Heat Shinkable Outdoor Terminational kits

Product Advantage:

1. 16 years producing, 16 years exporting experience

2. all sets passed IEC60520 and JB8144 testing

3. With the excellent electrical and mechanical function, the product can be used in all kinds of conditions for a long time.

4. The price varies according to the termination's length:650mm, 800mm, 1000mm (regular)

5. The product are be widely used in power supply, and petrochemicals, metallurgy, railway station, sea port and other constructions.

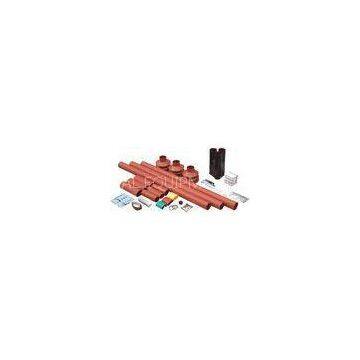

Component: 3-Cores Breakouts, Stress Control tubing, Insulation tubing,Sealing tubing, Rainsheds,Marked tubing, Filling Adhesive ,Earth Braid, Constant Force Spring,etc.

Technical Data

Property	Typical Data
Ac withstand(under rain)	45kv/1min
Ac withstand(without tain)	45kv/1min
Impulse withstand	±105kv/10times
Dc withstand	-52kv/15min
Ac withstand	35kv/4h
Partical discharge test	≤10Pc(1.73Uo)

Characteristic

1). Light weight, reliable operation, easy installation

2). Shrinking fast and no crack

Specifications

Name	Type	Size of Conductor(mm2)
3-CORES "XLPE" OUTDOOR TERMINATION KITS	WSY-35/3.1	50-120
3-CORES "XLPE" OUTDOOR TERMINATION KITS	WSY-35/3.2	150-300
3-CORES "XLPE" OUTDOOR TERMINATION KITS	WSY-35/3.3	400-500
?	?	?
