Home > Products > Innolux LCD Panel > RGB Vertical Stripe Innolux LCD Panel AT070TN83 V.1 Antiglare 800480 Resolution

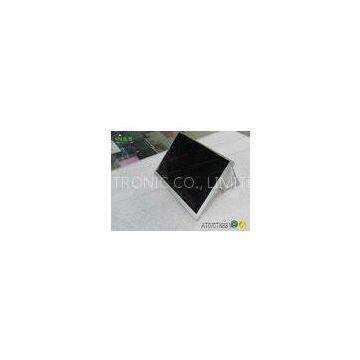

RGB Vertical Stripe Innolux LCD Panel AT070TN83 V.1 Antiglare 800480 Resolution
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Sunlight Readable 4.1 TFT LCD Module For Mobile COM41H4M31XLC
-
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
-
Ultra - Thin 4.3\'\' 480 272 Resolution LG LCD Screen 450cd/M2 For LB043WQ2-TD08
-
A - Si 3.5\'\' 250cd/M2 LG LCD Panel High Luminance Portrait Type LH350V01-VD02
-
Low Power Consumption 8.0 Inch Tianma TFT Color Lcd Display 800 * 600 Resolution
-
Custom Industrial 8 Inch Tianma LCD Displays 6 OClock Viewing Angle TM080XFH04
Product Details
| Brand Name | Innolux | Place of Origin | China | |
| Model Number | AT070TN83 V.1 |
Product Description
Certification:ISO9001
7.0''inch 800×480 resolution 300cd/m2 for AT070TN83 V.1 TTL panel
Quick Details:
| Panel Model : | ?AT070TN83 V.1 1 Compatible model |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 130g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 155.3×94.3 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 5.5±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
What we do for AT070TN83 V.1 :
As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous Brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment. Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.
N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
Itroduce the AT070TN83 V.1 :
