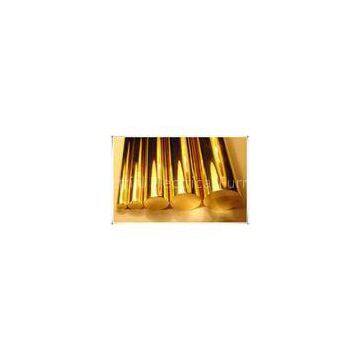

Copper Rod 8mm Horizontal Continuous Casting Machine 50Hz 3 Phases
- T/T L/C D/P D/A
 - 7 days

You May Like
-


2 Strand Brass Strip Casting Machine Horizontal Continuous 0.10mm Tolerance
 -


16mm Plate Strip Billet Alloy Copper Continuous Slab Caster Double Strand
 -


Horizontal Copper Continuous Casting Machine Brass Wire With Melting Holding Furnace
 -


5T Melting Furnace Copper Continuous Casting Machine For 30mm Bronze Rod
 -


Tin Phosphors Bronze Strip Billets Horizontal Continuous Casting Machine 0.5 T/H Output
 -


Rectangular Billet Copper Continuous Casting Machine With Melting And Holding Furnace

Product Details
| Brand Name | Jingjie | Place of Origin | China | |
| Model Number | GVT |
Product Description
Copper Rod 8mm Horizontal Continuous Casting Machine 50Hz 3 Phases
?
?
Ⅰ. Specifications:
1. Types of casting specifications
* Brass
?
1.1 Rod-wire billets (round-shaped)
* a. Diameter range Φ(18--300)mm
* b. Number of production lines
* 1-- 12 lines(according to section conditions)
?
?
?
Ⅱ.Process:?
?
? ?
Ⅲ.Major Technical Parameters:
1. Frequency cored conbimed Furnace (Brass Alloy 63%Copper + 37%Zinc)
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?(Brass Alloy58%Copper + 42%Zinc)
| 1.1 | Total Rated Power: | ||
| ? | Melting Section | 120KW | |
| ? | Holding Section | 80KW | |
| ? | Total Power | 200KW | |
| ? | Production Capacity | 5T/Day | |
| 1.2 | Parameters of Melting Section: | ||
| ? | Rated Voltage | 380V | |
| ? | Phase Number | 3Phases | |
| ? | Frequency | 50Hz | |
| ? | Max Melting Rate | 300KGS/H | |
| ? | Rated Voltage | 380V | |
| ? | Frequency | 50Hz | |
| ? | Max Melting Rate | 300KGS/H | |
| ? | Heating Temperature | 0~1250℃ | |
| ? | Holding Temperature | 1000-1250℃ | |
| ? | Voltage Regulation Level | 90,120,150,180,210,240,300,340V | |
| ? | Cooling Mode | Water Cooling | |
| ? | Temperature of Cooling Water | ≤40℃ | |
| ? | Quantity of Cooling Water | 10~20T/H | |
| ? | Pressure of Cooling Water | 0.2~0.4MPa | |
| 1.3 | Parameters of Holding Section: | ||
| ? | Rated Voltage | 440V | |
| ? | Phase Number | 3 Phases | |
| ? | Frequency | 50Hz | |
| ? | Heating Temperature | 0~1250℃ | |
| ? | Holding Temperature | 1000~1250℃ | |
| ? | Voltage Regulation Level | 90,120,150,180,210,240,300,340V | |
| ? | Cooling Mode | Water Cooling | |
| ? | Temperature of Cooling Water | ≤40℃ | |
| ? | Quantity of Cooling Water | 10~20T/H | |
| ? | Pressure of Cooling Water | 0.2~0.4MPa | |
2. Ф8-Ф60mm Horizontal Continuous Casting Machine
| 2.1 | Power of Motor | 5kw(Siemens or Schneider) |
| 2.2 | Casting Speed | 0~2000MM/Min |
| 2.3 | Casting Program |
			 Pulling---Stop---Pulling Pulling---Stop---Retreat---Stop The two programs can be changed and shifted optionally and the parameters of process can be modified online.  |
| 2.4 | Casting Specification of Billet | Φ8-Φ60mm |
| 2.5 | Casting Strand |
			 Φ8 Two strands in one mold Mold--4sets  |
| ? | ? |
			 Φ60 4sets/One strand in one mold Mold--4sets  |
| ? | ? | ? |
| ? | ? | ? |
| ? | ? | ? |
| ? | ? | ? |
3. Synchronous Automatic-tracking Sawing Machine
| 3.1 | Power of Motor | 3.0KW |
| 3.2 | Size of Sawing Belt | 1.1×34×4115 |
| 3.3 | Sawing Speed | 27/46/68 |
| 3.4 | Cutting Specification | ≤Ф380 |
| 3.5 | Clamping Mode | Hydraulic |
Ⅳ. Equipment Components?List of ?Horizontal?Continuous Casting Production line for?Rod-Wire?
