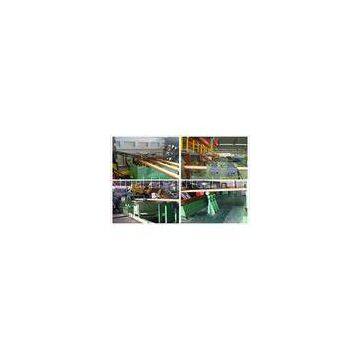

Hydraulic Copper Continuous Casting Machine Water Cooling For 300 mm Brass Pipes
- T/T L/C D/P D/A
- 7 days
You May Like
-
Horizontal Copper Continuous Casting Machine For 100mm Red Copper Pipes
-
Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM
-
Tin Phosphor Bronze Tube Low Pressure Casting Machine High Efficient
-
Brass 100mm Rod Copper Continuous Casting Machine Horizontal Type
-
30mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery
-
Continuous Copper Rod Casting Machine 200mm Nickel Cupronickel Pipes
Product Details
| Brand Name | Jingjie | Place of Origin | China | |
| Model Number | GVT |
Product Description
Hydraulic Copper Continuous Casting Machine Water Cooling For 300 mm Brass Pipes?
?
?
Ⅰ. Copper Continuous Casting Machine Introduction:
? ? A typical horizontal continuous casting unit for copper tubes consists of a combined melting-holding furnace with metal flowing under the surface (or separate melting and holding furnaces), a crystallizer, a cooling water system, a servo control withdrawal mechanism, an in-line synchronous saw, a saw for changing molds, a hydraulic furnace tilting system and an electric control system, etc.
The melting furnace and holding furnace can either be combined into one unit or separate from each other, depending on the material to be produced. When combined, the furnaces will use jet flow type inductors. In order to control the composition of the melt, a graphite plug and a channel made of silicon carbide will be installed between the two furnace chambers to prevent the melt from losing heat and absorbing the air. By doing so, the product quality will be stabilized and enhanced and the metal loss and energy consumption will be reduced.
Separate furnaces. Between the melting furnace and holding furnace there is a launder, through which the molten metal flows from the melting furnace into the holding furnace.
We supply launders and nozzles for casting.
|
Billet diameter:
|
￠10—￠300mm
|
|
Billet length:
|
From 1000mm
|
|
Number of strands:
|
1-6
|
|
Materials:
|
Copper alloys, copper -nickel, dhp copper, etc
|
|
Product capacity:
|
Up to 20,000t/a
|
|
Operators needed:
|
1~2 per shift
|
?
?
?
Ⅱ.Process:?
?
? ?Main equipments of production line
? ? ?melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
? ? ? ? * 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;
* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;
* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.
Ⅲ. Equipment Components?List of ?Horizontal?Continuous Casting Production line for?Rod-Wire?
