10t air winch in mining

Product Introduction

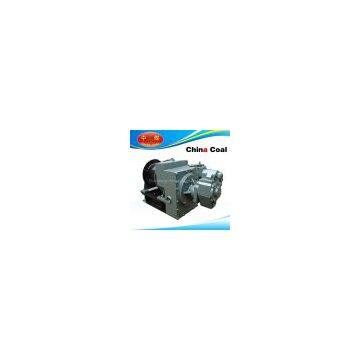

Adopting pneumatic motor as power,pneumatic winch model HQDH series can tow and lift heavy goods through speed-reducing gearbox to drive roll.It has the advantages of compact structure ,convenient operation,safe and reliable operating,simple maintenance, smoothly running and stepless speed-changing etc. It is used in oil field,well-drilling in oil field ,mine-exploiting and others place with inflammable or easy exploding air.

To ensure that users work safety ,the pneumatic winch adopts brake system. According to the quality of brake,the system is classified into single-brake,double-brake.According to brake type, it is classified into hand-brake, foot-brake,hydraulic-brake and pneumatic-brake. In addition, pneumatic winch also can be classified into high base and low base  pneumatic winch.

Main Parameter

type

number parameters QJH-5Ax48

one Pressure of compressed air(MPa) 0.6-0.7 (MPa)

two Rated traction force (kN) 5(kN)

thire Rated traction force(m/mim) 48(m/mim)

four Pneumatic Motor Rated power(kW) 4(kW)

Cylinder number(piece) 6 (piece)

Cylinder diameter(mm) 65(mm)

AIr consumption(L/S) 130(L/S)

five Drum

  Number(piece) 1(piece)

Diameter (mm) 175(mm)

Width (mm) 198(mm)

rim diameter (mm) 290(mm)

Wire rope content (mm) 120(mm)

six Wire rope diameter(mm) 8(mm)

seven Inlet diameter (mm) 20(mm)

eight

Configuration Dirnension

  Length (mm) 857(mm)

Width (mm) 342(mm)

Height (mm) 440(mm)

nine Weight (Kg) 128 (Kg)

ten Remote control distance 6-15(m)
