Air Motor Powered Blade Air Winch

?Product Introduction

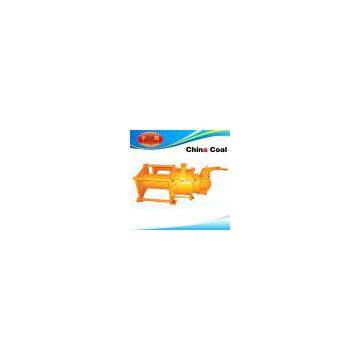

Air Motor Powered Blade Air Winch with CE

Blade air winch with aluminium alloy material for shell,is powered by compressed air,Manual control and driven by blade air motor,gear down and drive drum to rotate.Main features:Small size.light weight,high efficiency,easy to operate,security and reliable,and can realize stepless speed in a certain range.It can lift and pull heavy objects in oil ships and work places with flammable gas.

Specifications

1. This winch is powered by compressed air and can be manually controlled. Driven by the blade air motor and slowed down by gears,it can rotate the drum to meet the working requirement by usage of braking the annular gear.

2. This winch is equipped with one foot valve.

When on operation, step the foot valve first, the winch start working, then control the operation by handles.

When off operation, release the foot valve, the winch stop working automatically, it can achieve a longer life for the winch and air motor.

Main Parameter

Model Rated Pull

(KN) Rope speed

(m/min) Rope diameter

(mm) Rope capacity

(m) Air pressure

(mpa) Outline dimension

(mm) Weight

(kg)

ZM75K-6-50 0.75 45 6 50 0.6 497*292*293 27

ZM75K-6-60 0.75 45 6 60 0.6 522*292*293 29

ZM75K-6-80 0.75 45 6 80 0.6 582*292*293 32

ZM100K-6-50 1 25 6(8) 50(40) 0.6 514*295*293 34

ZM100K-6-80 1 25 6(8) 80(70) 0.6 599*295*293 36

ZM100K-6-100 1 25 6(8) 100(80) 0.6 670*295*293 38

ZM200K-6-50 2 15 6(8) 50(40) 0.6 514*295*293 34
