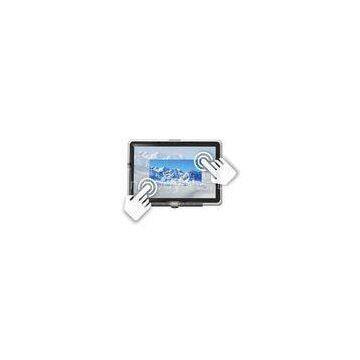

46 Infrared IR Multi Touch Screen Panel Frame With 32 Touch Points (WVT-M32R-46)

Infrared(IR)multi touch screen overlay kit
Multi touch screen overlay kit
1. 2points touch (Multi touch)
2. IP65 Available
3. Support zoom in/out, display rotation
4. Withstands severe environments
5. Stable, no-drift calibration performance
Infrared(IR)multi touch screen overlay kit
Multi touch screen overlay kit
Applications
--Electronic catalogs, Ticket machinePoint-of-information kiosks, Desktop touch monitor
--Gaming, POS, ATM, lottery, and amusement
--Industrial control rooms
--Computer-based training
--In-vehicles and transportation
--Medical instrument
Infrared(IR)multi touch screen overlay kit
Multi touch screen overlay kit
Specification
1. Size
General Size 32 inch to 65 inch
Fit in with Panel display device
2. Performance
Touch Mode Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out
Resolution(Interpolation) 4096*4096
Linearity Error Response Speed
3. Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times Unlimited
Touch Activation Force No minimum touch activation force is required
Minimum Touch Object 2.5 mm X 2.5 mm
Vandal-proof No break by 1-pound steel ball dropping from 130 cm high
Surface Durability Surface durability is that of glass, Mohs\' hardness rating of 7
4. Optical
Glass: Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional
Light Transmission 92%
WiViTouch is specialized in producing resisitve touch screen, touch panel. Surface Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Monitor, Kiosk, Interactive touch foil, LCD touch Panel PC/ Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, touch solutions, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point. etc.
v id=\"StyleTableProd\">

? General Size	? 15 inch to 159 inch
? Fit in with	? Panel display device
? Touch Mode	? Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out
? Resolution(Interpolation)	? 4096*4096
? Linearity Error	? < 1.5mm
? Response Speed	? < 15ms
? Input Method	? Finger or gloved hand (rubber, cloth or leather)
? Touch Times	? Unlimited
? Touch Activation Force	? No minimum touch activation force is required
? Minimum Touch Object	? 2.5 mmX 2.5 mm
? Vandal-proof	? No break by 1-pound steel ball dropping from 130 cm high
? Surface Durability	? Surface durability is that of glass, Mohs\' hardness rating of 7
? Glass	? Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional
? Light Transmission	? 92%
? Gloss	? Antiglare surface (curved or flat): 95? ± ? 15 gloss units or 65? ± ? 15 gloss units
? Temperature	? Operating Range: -20° C ~ 70° C; Storage Range: -40° C ~ 85° C
? Relative Humidity	? Operating Range: 0%~90% RH (no dew falls)
? Altitude	? Up to 3, 000m
? Ambient Light	? Direct sunlight 90° to ± 30° to the display surface Touch detection operational
? Operation Voltage	? Typical +DC 5V, +4.75V to +5.25V
? Power Supply	? Size under 52a€? (include 52a€? )USB or PS/2 Interface, power ripple max. 200mV rms
? Interface	? Full Duplex USB 2.0 (Full Speed) Plug and play compatible
? Current	? Typical 150MA@+5VDC; 350mA, maximum
? Power	? < 1.5W, operating current< 300mA
? Ope
