Win7 Operating System Optical Camera System TPA-06A1 Electronic Interactive Whiteboard

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NWELIFE		Place of Origin	China
Model Number	NWELIFE

Product Description

Delivery Time:30 days
Certification:ISO9001,ISO14001

Win7 Operating System Optical Camera System TPA-06A1 Electronic Interactive Whiteboard

Hitouch Optical camera system TPA-06A1 is consisted by 2 camera lens with boards, USB Cable and reflective strips, it can convert the wall/windows/screen to an interactive whiteboard/touch screen. The camera module Max can cover 95’’ 4:3 size, dual touch is working very well under win7 system. Driver free on Win XP/Win7/Linux System. It is easy to set the camera module if you follow our instruction, the setting tool and instruction we’ll send you by CD.

The reflective strips is like double faced tape, take out the plastic film of the strips, you can stick the strips on the frame or whiteboard.

Applications

Education: interactive classroom teaching Business meeting: interactive demostrate Shopping Window

Specifications

Technology: Optical Imaging CCD

USB Interface: USB2.0

Touch resolution: 32767*32767

Touch accuracy: ±1mm

Response speed: ≤8ms

Cursor speed: ≥180dots/second,Max:300dots/second

Operating system: Win7

Lifetime: 7 years or more 60,000,000clicks.

Input Method:touching&writing by finger or any untransparant objects.

Power Supply: USB Cable

Scaning Method: Auto turn-on, continue working.

Installing method: Install it on the display/board

Accessories: 2* Lens, 2* PCB control board, 1* Pin Cable, 1* USB cable, reflective strips

Competitive Advantage

Multi-touch operations. Support two fingers/pens/any opaque objects operating together under Win7 system Driver free under Win XP/Win7/Linux/Mac System. Dual touch under Win7, while single touch under Win XP/Linux/Mac System. Small weight for shipping. 0.5KG/PCS only! Save your cost on shipping! Accurate position, high precision (≤0.1mm), could draw smooth and exquisite curve. Quick response speed(≤8ms), no delay in handwritten recognition Easy to install and set. We have instruction which comes with the product. Just follow the instruction, the installtion and setting are very easy. Multi Application. The user can use our camera module to make the interactive whiteboards/touch screen/touch window/touch screen monitor/touch computer. The camera modules are easily built in. We also offer small camera lens to make the optical imaging touch screen. Software advantages

We offer smart teaching softare with our camera module. The teaching software contains most of common tools in the teaching for example pens, erasers, shapes, math tools, physics tools, curtain, magnifier etc, Besides it has functions of recording, commenting on PPT/Word/Excel/Desktop/Webpage, inserting pic/video/flash/excel/word etc. The software is very powerful which is very helpful in interactive teaching. The licensed teaching software support dual touch too.

Pictures

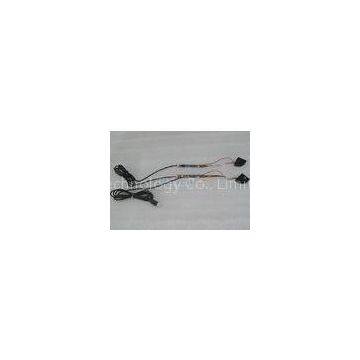

Small Camera Module

Connection
