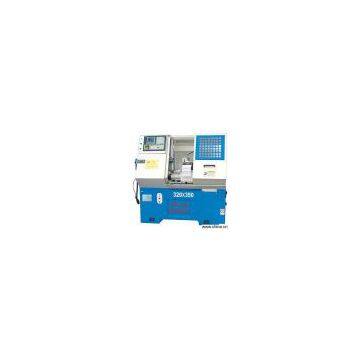

Sell Turning Center

Model No.:CK0632
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Maximum rotary diameter: 380mm, 14.4" 2) Maxximum diameter work-piece: 20mm, 12.6" 3) Maximum diameter of bar stocks: 40mm, 1.57" 4) Maximum turning diameter of tool turret: 150mm, 5.9" 5) Maximum length of workpiece: 380mm, 14.96 6) Cut thread/thread cutting metric system: 0.25-12mm 7) English system and system thread: 28" 31/2" 8) From guideway of lathe (bed to centerline of the spindle): 195mm, 7.68" 9) Maximum speed of spindle (stepless): 300-3,000r/min 10) X axis maximum length of travel: 200mm, 7.88" 11) Z axis maximum length of travel: 380mm, 14.4" 12) Feed speed in axis X (stepless): 5-1,000mm/min 13) Feed speed in axis X (stepless): 10-2,000mm/min 14) Fast motion speed in axis X: 3,000mm/min 15) Fast motion speed in axis Z: 6,000mm/min 16) Sectional area of tool bar/sectional area of cutter bar: 20 x 20mm 17) Distance between centerline of spindle and supporting surface of tool: 20mm 18) Taper of the tailstock: no. 4 19) Maximum stroke of the tailstock: 100mm 20) Power of master motor: 3kW 21) Dimensions of lathe tool (L x B x H): 1,600 x 1,160 x 1,650mm 22) Net weight: 850kg
