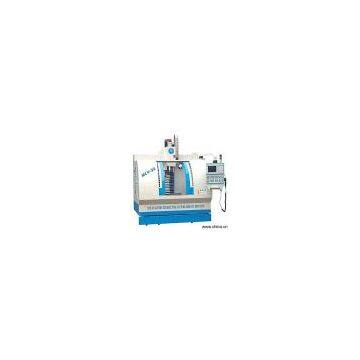

Sell Vertical Machining Center

Model No.:MCV32
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Dimensions of the surface of working table 700 x 360mm 27.56"x14.17" 2) Distance between the end of the spindle and the surface of the working table: 640mm, 25.20" 3) Distance between the centerline of the spindle and the surface of the working table: 400mm, 15.75" 4) Spindle taper: BT40 5) Maximum speed of spindle (stepless): 60-6,000r/min 6) Power of master motor: 4/5.5kW 7) Maximum length of travel of X axis: 400mm, 15.74" 8) Maximum length of travel of Z axis: 420mm, 16.54" 9) Maximum length of travel of Y axis: 340mm, 13.39" 10) Feed speed in axis X (stepless): 10-2,000mm/min 11) Feed speed in axis Z (stepless): 5-1,000mm/min 12) Feed speed in axis Y (stepless): 10-2,000mm/min 13) Fast motion speed in axis X: 12,000mm/min 14) Fast motion speed in axis Z: 12,000mm/min 15) Fast motion speed in axis Y: 6,000mm/min 16) Capability of tool changer (set): 10 17) Maximum size of tools (diameter): 90 x 250mm 18) Maximum weight of tools: 8kg 19) Tool shifting time / tool changing time: 5s 20) Dimensions of lathe tool (L x B x H): 1,950 x 2,300 x 2,200mm 21) Net weight: 2,500kg
