SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
ST 2.0mm 3.0mm Optical Fiber Connector Simplex with Metal Housing
-
Multimode LC Fiber Optic Connector with PC UPC APC Polishing Fiber Ferrule
-
FC Simplex and Duplex Fiber Optic Connector with Blue Plastic Boot
-
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
-
MPO MTP Optical Fiber Connectors With 8 Core 12 Core 24 Core Lc Single Mode Connector
-
D4 Multimode Fibre Connectors For Telecommunication Network , Optical Fiber Connector
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | FOC-SC |
Product Description
Certification:ISO, SGS, ROHS
SC OM1 OM2 Fiber Optic Connector Telecome Class for 0.9mm Cable
Description:
SC fiber connector is a snap-in connector also with a 2.5 mm ferrule that is widely used for it's excellent performance. It was the connector standardized in TIA-568-A.
Features:
Good durability
Good temperature performance
Easy installation
Competitive price
Precision mechanical dimension
Boots in a variety of colors
Application:
Fiber Optic Telecommunications
FTTH (Fiber To The Home)
CATV & CCTV
Data Processing Networks
Telecom Equipment
Local Area Networks
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | ≦0.2dB | ≦0.3bB |
| Insert-Pull Test | 1000 times | |
| Operating Temperature | -40°C ~ +85°C | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≦1um | 127um concentricity deviations:≦3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
Order Information:
| Item | Connector Description | Item | Connector Description |
| ? | PC/UPC/APC | ? | PC/UPC/APC |
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | ? | ||
| ? | ? |

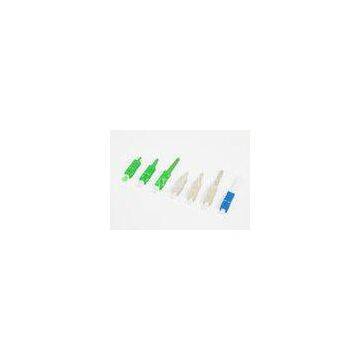

Product Picture:
