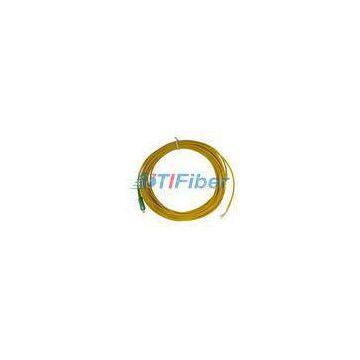

2.0mm 3.0mm Fiber Optic Pigtail Simplex , Duplex with ROHS Certificate

Fiber optic pigtail????????????????????????????????????????????????? Technical Standard:

Insertion Loss: ??????????????????????????? ?PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; ? Typical0.1dB;

Return Loss: ??????????????????????????????? SM? ? PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;????
??????????????????????????????????????????? ????????? MM? PC≥ 35dB, UPC≥35dB???

Interchangeability:?????????????????????? ?≤ 0.2dB

Salt Spray:???????????????????????????????????? ≤ 0.2dB

Repeatability:?????????????????????????????? ?(1000 times)? ≤ 0.1dB

Vibration:????????????????????????????????????? (550Hz ? 1.5mm) ≤ 0.1dB

High Temperature:????????????????????? ?( +85 sustain 100 hours) ≤ 0.2dB

Low Temperature:?????????????????????? ?(-40 sustain 100 hours) ≤ 0.2dB

Temperature Circularly:?????????????? (-40+85 sustain 100 hours)? ≤ 0.2dB

Humidity:??????????????????????????????????? ?(+25+65 93 R. H. 100 hours)? ? ≤ 0.2db

Apex Offset:??????????????????????????????? 0μ m≤ ≤ 50μ m

Radius of Curvature:?????????????????? 7mm≤ ≤ 25mm

Cable Type:???????????????????????????????? Simplex, Duplex, Fan-Out;

Connector Type:?????????????????????????? LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,

????????????????????????????????????????????????????? ESCON etc.

Fiber Mode: ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? SM (single mode) G652D, G655, G657,
????????????????????????????????????????????????????? MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)

Fiber?Optic?Patch?Cord

Connector? Type

Ceramic?Ferrule
?End?Face

Cable?Diameter

(mm)

Simplex/Duplex

Single?mode
/Multi-mode

Length

(meter)

ST

PC/UPC

Φ0.9,?Φ2,Φ3

Simplex/Duplex

SM/MM

Customized

LC

PC/UPC

Simplex/Duplex

SM/MM

Customized

MU

PC/UPC

Φ0.9,?Φ2

Simplex/Duplex

SM/MM

Customized

MTRJ

PC/UPC

Φ0.9,?Φ2

Duplex

SM/MM

Customized
