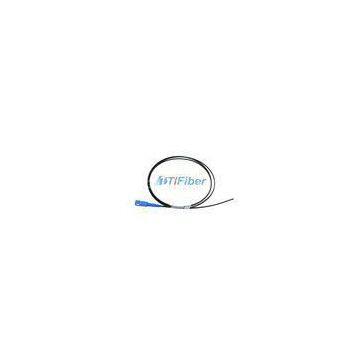

FTTH Drop Fibre Optic Pigtails With Black LSZH Jacket For Indoor / Outdoor

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TTI/OEM/ODM		Place of Origin	China
Model Number	FTTH-SC

Product Description

Delivery Time:2-3 days
Certification:ISO, SGS, ROHS

FTTH Drop Fibe Pigtail with Black LSZH Jacket for Indoor / Outdoor
?
Features:

Complies with IEC, Telcordia GR-326-CORE standard

Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Simplex or duplex is available
PVC or LSZH fiber optical cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)

Application:

Premise installations

Wide Area Networks (WANs)

Telecommunication networks

Active device termination

Local Area Networks (LANs)

Data processing networks

Specification:

???? Specifications
Test Item		Test Condition	Value(dB)
			UPC	APC
Optical Performance	Insertion Loss	1310nm LED light source	<0.3	<0.3
	Return Loss	1310nm LD light source	>50	>60
Environmental Performance (Max. Insertion Loss change)	High temperature	+85oC,168 hours	<0.2
	Temperature Cycle	-40-+75oC, 21 Cycles 168 hours	<0.2
	Humidity Aging	+75oC, 95%R.H,168 hours	<0.2
	Humidity/Condensation Cycling	-10-+65oC, 90%~100%RH, 14 cycles 168 hours	<0.2
Mechanical Performance ( Max. Insertion Loss change)	Vibration	10-55Hz, 1.5mm(p-p)	<0.2
	Flex	0.9kgf,-90o~+90o repeat for 100 cycles	<0.2
	Torsion	1.35kgf, ±900o,10times	<0.2
	Withstand tensile	90N,10min	<0.2
	Drop	H=1.5M,Total of 8 drops	<0.2
	Exchangeability	Randomly	<0.2
	Durability	500 times	<0.2

?
Order Information:
?

Boot (cable) Size	Boot Color	Fiber Type	Cable number	Application	Length
0.9mm	Black	9/125μm (SM)	Simplex	PC	Customized
2.0mm	Green	50/125μm (MM)	Duplex	APC
3.0mm	Red	62.5/125μm (MM)	Fan-out (4f)
			Fan-out (6f)
			Fan-out (8f)
			Fan-out (12f)
