3G WCDMA Modem, 3G M2M USB Serial modem

Place of Origin	China

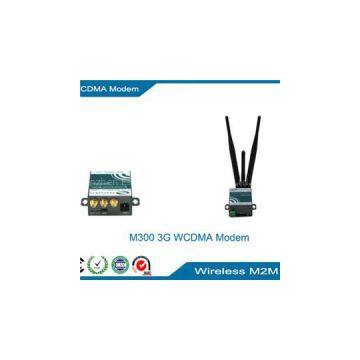

>>| E-Lins Industrial 3G WCDMA ModemE-Lins 3G modems covers 3G WCDMA, 3G CDMA2000 EVDO, 3G TD-SCDMA. 3G WCDMA is the world-wide popular used technology for mobile networks.?For single sim 3G WCDMA modem, the main model is M300.ModelSim Slot QuantityModule QuantityPortOthersM30011USB * 1>>| Hot SpotBuilt-in 2G/3G industrial cellular modules, insert SIM/UIM card to work directly;Built-in SIM/UIM card slot;Broadband M2M communicationsSIM failover/standby APN2G/3G failover for fixed line broadband connectionsRapid service deployment applicationsSupport At commandUSB portGPS support (option)>>| Typical Diagram>>| Specification of Industrial 3G WCDMA ModemWirelessMobile NetworksUMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)GSM EDGE/GPRSCellular FrequencyUMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD) 850/1900/2100 MHz or 850/900/1900/2100Mhz/AWS optionalQuad-band EGSM 850/900/1800/1900MhzDataBandwidthDC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;WCDMA/UMTS: Downlink/Uplink 384 kbps;EDGE: Downlink 236,8 kbps, Uplink 118 kbps;GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;Notes: the bandwidth is peak value. Real value depends on carrier network support.InterfaceAntenna50Ω SMA female interface *3, external detachable;Antenna for Main Cell, MIMO Cell, GPSLedPower indicatorData indicatorUIM/SIM1.8V/3VUSBUSB 2.0 femalePowerPower supplyDC5V-40V, option is DC5V-50V / DC5V-60V, typical DC9V1A or 12V1A or 12V2APower consumptionPeak: 700mA@+9VDCAverage: 85mA@+9VDCIdle: 30mA@+9VDCSoftwareOSWindows;Mac OS;Linux;Android;Other OS with USB port;At commandSupport at command;Packed with GUI softwarePhysicalOperating TemperatureWork temperature: -30°C to 70°C option for -30°C to 80°CStorage temperature: -40°C to 85°CHumidity95% Maximum (Non-condensing)DimensionsItem (L x B x H): 87mm*50mm*23mmPackaging (L x B x H): 102*70*23mmPCBA: 84mm*48mm*20mmWeight150g (not including accessories and package)Electromagnetic compatibilityanlistatig test: Class 3Radio electromagnetism test: Class 3OthersWarranty1 Year, can extend up to 5 yearsPackage ContentsThe M300 Industrial 3G WCDMA ModemUSB cablePower AdapterAntennaCD-ROM with Product Documentation
