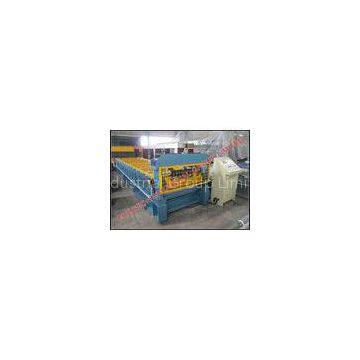

762mm Widespan Roof Panel Roll Forming Machine for Steel Coils 914mm / 925mm Wide
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Aluminium / Steel Roof Panel Roll Forming Machine with 5 tons Auto Hydraulic Uncoiler
-
Wide Gutter Roof Panel Roll Forming Machine Cold Roll Forming Equipment
-
Steel R-panel Roof Cladding Roof Panel Roll Forming Machinewith CE Certificate
-
Prepainted Aluminium / Steel Standing Seam Roof Panel Roll Forming Machine
-
Trapezoid Shape Steel / Aluminium Roof Panel Roll Forming Machine 1200 meters / hour
-
Box Profile Metal Roof Panel Roll Forming Machine for Roof Cladding Project of House
Product Details
| Brand Name | Creation | Place of Origin | China | |
| Model Number | CYX-28-190.5-914 |
Product Description
Certification:ISO 9001:2008, CE, SONCAP
762mm Wide Span Roof?Sheeting?Machine Suitable for Steel Coils of 914mm and 925mm Wide
General Introduction?
This roll forming machine is specially designed for the prepainted & galvanized steel coils of 914mm & 925mm wide to make 762mm widespan roof sheeting profiles. The finished widespan is a roofing and cladding profile designed to provide an economic alternative to deeper Box Rib profiles without losing the aesthetic appeal of a square fluted profile. The trapezoidal widespan profile offers greater spans and lower roof slopes than Corrugated sheeting but provides the same covering width. Widespan can be factory cranked, curved and bullnosed to various radii depending on customers’ requirements.?
Wide Span Roof Sheeting Porofile Draiwng with Dimensions
Technical Specifications of Widespan Roof Sheets Rollforming?Production Line
|
Technical Items |
Details |
|
|
Raw Material |
Type |
Aluminium & Steel Coils, PPGI, GI, PPGL |
|
Width |
925 mm, 914 mm |
|
|
Thickness |
0.3-0.7?mm |
|
|
Yield Strength |
235-345 MPa or specially designed for 550 MPa |
|
|
Finished Products |
Cover width |
762mm |
|
Length |
Adjustable |
|
|
Power Requirement |
Voltage |
220V/380V/415V/440V |
|
Driving Motor |
7.5 KW |
|
|
Cutting Motor |
2.2 KW |
|
|
Roof Sheet?Production Speed |
900-1200 meters per hour |
|
|
Coil Decoiler |
Type |
Un-powered or Powered |
|
Capacity |
5 tons |
|
|
Rollers?Station |
21?sets |
|
|
Rolling Shaft Diameter |
72 mm |
|
|
Cutting Type |
Post-cutting |
|
|
Operation System |
Mitsubishi PLC, transducer and touching screen |
|
|
Runout?Tables |
2 sets |
|
|
Machine Size |
Around 9.3?x 1.6 x 1.5 meters |
|
|
Machine Weight |
Around 8.5?tons |
|
?
Main?Components of Widespan Roof Sheets Rollforming?Production Line
|
No. |
Items |
Quantity |
|
|
1 |
Coil?Decoiler |
1?set |
|
|
2 |
Main Rollformer?Machine |
Direction?Guilder |
1?set |
|
Rolling?System |
1?set |
||
|
Post-cutting?Device |
1?set |
||
|
3 |
Run Out?Tables?for?Finished?Products |
2?sets |
|
|
4 |
Hydraulic?Station?for?Cutting?Device |
1?set |
|
|
5 |
PLC?Control?Cabinet |
1?set |
|
|
6 |
Tools?Box?with?Spare?Parts |
1?set |
|
?
More Roof Sheet Making?Machine Pictures For Reference
Applications:?
Widespan roof sheets are available in a wide range of materials displaying various structural properties.?
?
