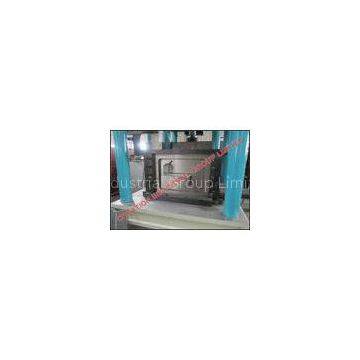

Hot Dipped Galvanized Steel Strip Purlin Roll Forming Machine with Decoiler

Hot Dipped Galvanized Steel Strip Roll Forming Machine For 100-350mm Zee Shape Purlins

Size Chart

Working Flow

Decoiling----Direction Guilding----Leveling----Rollforming----Holes Punching----Cutting- Output on Supporters

Main Components of Galvanised Steel Z Profile Purlin Making Machine

● Decoiler

● Direction Guilding Device

● 7 Rollers Leveling Device

● Roll Forming System

● Holes Punching Device

● Hydraulic Cutting Equipment

● Mitsubishi PLC Control System

● Runout Tables for Finished Purlines

Technical Specifications of?Galvanised Steel Z Profile Purlin Making Machine

1) Decoiler
?Decoiler type: manual or automatic (optional)
?Capacity of decoiler: 3 tons
?Inner diameter:508mm
?Outer diameter:1200mm
2) Direction Guilding and Leveling Device
It used to feed and flatten?the material?before rollforming.
Structure of leveling device: 3 rollers on top?and 4 rollers on bottom
3) Roll?Forming System
Different sizes of zee shaped purlins can be produced after the regulation of spacer on the rollers.
Main motor power: 15KW
Forming speed: 8-12m/min
Material of roller : GCr15 steel with quenching treatment, then coated with chrome HRC55-60°
Roller Stations:15 groups
Material of main rolling shaft: High grade No.45 steel after quenching treatment
Diameter of main shaft: ?85mm
Transmission system: chains
4) Hydraulic Punching & Cutting
Punching type: Hydraulic powered
Punching material: Cr12 mould steel with?quenching treatment
Punching die: Cr12 mould steel with quenching?treament
Cutting material: Cr12 mould?steel with quenching?treatment
Hydraulic motor power: 5.5KW
5) Automatic?Control System
Type: PLC frequency control system with touching screen
PLC Brand: Mitsubishi original from Japan
Encoder Brand: Omron
Length Error: ±2mm
