14/16 slots Media Converter/Switch with proper structure for network communication
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | FUDA | Place of Origin | China | |
| Model Number | FUDA |
Product Description
Certification:ROHS,ISO9001
14/16 slots Media Converter/Switch
1. CE,ROHS,ISO9001,UL
2. 100% professional factory
3. lower price
Description
Ethernet Optical Fiber Converter/SwitchSF05 Series provides one or two 100M optical fiber ports and three 10/100M UTP ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX) or between 100M and 100M optical fiber interface (FX).
UTP port supports MDI / MDI-X auto crossover
Broadcast storm protection
Supporting the max 1916 bytes frame
Internal IC of prevented thunderbolt could greatly reduce damage of the converter caused by thunderbolt induction.
Technical SpecificationsOperating standards: IEEE802.3u 100Base-TX and 100Base-FX
Connector: UTP:RJ-45,10/100Mbps; Fiber: SC/FC,100Mbps (Full Duplex)
Cable
UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
Power supply: AC100 ~ 240V,50~60Hz; DC5V 2A;
Environment temperature:0 ~ +50°C
Storage temperature:-20 ~ +70°C
Humidity:5% ~ 90%
Dimensions:27 × 85 × 125mm
Optical Fiber InformationModel | Connector | Fiber type | Max distance | Wavelength | Sensitivity | Link Budget |
|
SF05M | SC | multimode | 2km | 850 or 1310nm | -20~-12dBm | -30dBm | 10dBm |
SF05S | SC | singlemode | 20km | 1310nm | -14~-8dBm | -32dBm | 18dBm |
SF05MM | SC | multimode | 2km | 850/1310nm | - 20~-12dBm | -30dBm | 10dBm |
SF05MS | SC | multimode | 2km | 850/1310nm | -20~-12dBm | -30dBm | 10dBm |
SC | singlemode | 25km | 1310nm | -14~-8dBm | -32dBm | 18dBm |
|
SF05SS | SC | singlemode | 25km | 1310nm | -14~-8dBm | -32dBm | 18dBm |
Order Information
Model | Product description |
SF05M | 10/100M Ethernet Fiber Switch with 3 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km. |
SF05S | 10/100M Ethernet Fiber Switch with 3 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~100km. |
SF05MM | 10/100M Ethernet Fiber Switches with 3 UTP ports and 2 multimode fiber ports, optical wavelength of 850 or 1310nm, the max fiber distance up to 2 km, for the use of multimode fiber repeaters. |
SF05MS | 10/100M Ethernet Fiber Switches with 3 UTP ports and 1 multimode fiber port and 1 singlemode port, optical wavelength of 850 and 1310nm, the max multimode fiber distance up to 2 km, singlemode fiber up to 20~100 km, for the use of single / multimode fiber converters. |
SF05SS | 10/100M Ethernet Fiber Switches with 3 UTP ports and 2 singlemode fiber ports, optical wavelength of 1310 or 1550nm, the max fiber distance up to 20~100 km, for the use of singlemode fiber repeaters. |

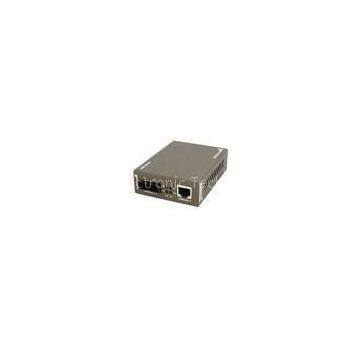

Pictures
