Fireproof Woodcore Raised Flooring Tiles High Pressure Plywood Timely Delivery

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Tianchi		Place of Origin	China
Model Number	TC w3

Product Description

Delivery Time:5 working days after received your payment
Certification:SGS

?

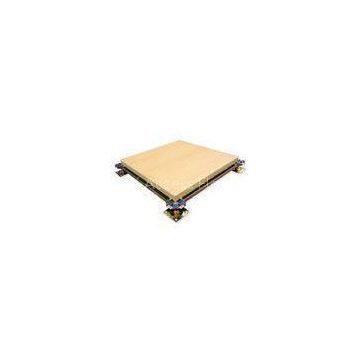

Fireproof Woodcore Raised Flooring Tiles High Pressure Plywood Timely Delivery
?
?
Specifications:

Material 1	HPL Finish
Material 2	Woodcore Density 725 kg/m3
Material 3	Black PVC Edge Trim Fire-proof
Material 4	0.5mm Galvanized steel
Size	60060035mm
Panel dimension	within ±0.25mm
Panel weight:	Approx 11KG
Type	FS800
Concentrated loading	363 kg
Ultmate loading	11250 N
Uniform loading	16500 N/SQM
Rolling loading	2950 N
Fire-proof perfprmance	Class B

?
?
?
Concentrated Load

Type (TianChi)	Size (MM)	Fire Proof	Concentrated Load			Ultimated Load (N)	Uniform Load(N/m2)	Impact Load(N)	RollingLoad(N)
Type (TianChi)	Size (MM)	Fire Proof	LB	N	KG	Ultimated Load (N)	Uniform Load(N/m2)	Impact Load(N)	10	10000
? TC450	? 60060030	? A	? ≥440	? ≥1960	? ≥200	? ≥5880	? ≥9720	? ≥295	? 1958	? 1566
? TC650	? 60060035 ?	? A	? ≥662	? ≥2950	? ≥301	? ≥8850	? ≥12500	? ≥445	? 2946	? 2356
? TC800	? 60060035 ?	? A	? ≥800	? ≥3550	? ≥363	? ≥11250	? ≥16100	? ≥536	? 3560	? 2670
? TC1000	? 60060035 ?	? A	? ≥1000	? ≥4450	? ≥453	? ≥13350	? ≥23000	? ≥670	? 4450	? 3560
? TC1250	? 60060035 ?	? A	? ≥1250	? ≥5560	? ≥567	? ≥16680	? ≥33000	? ≥780	? 5560	? 4450
? TC1500	? 60060035 ?	? A ?	? ≥1500	? ≥6660	? ≥680	? ≥26690	? ≥43000	? ≥780	? 6670	? 5560

?
?
Pedestal

Flat head pedestal	?
Steel flat head	95953mm
Steel pipe with screw	Diameter 25mm
Thickness of pipe	1.2mm
Bottom plate	95952mm ?

Stringer

Stringer	?
Size	5373020mm
Thickness	1mm
Top	With foam

?
?
Features:
1) no adhesive tape needed?
2) Electrostatic spray processed surface
3) Water, fire, dust and corrosion proof
4) Accurately sized, interchangeable, flexible, convenient to install
5) Peripheries have straight edge or hem,?High pressure plywood
?
Why us:
1. Wide range of product
2. Fine Workmanship
3. Lead R&D ability
4. Perfect Packing
5. Timely Delivery
