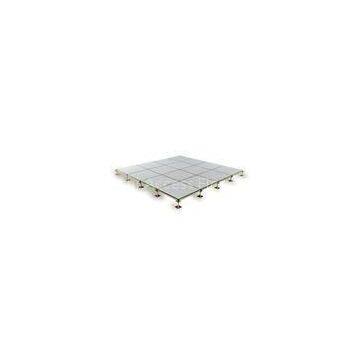

Corrosion Proof HPL Data Center Raised Floor Tiles , Raised Access Floor Panels
- T/T L/C D/P D/A
- 7 days
You May Like
-
Professional Woodcore Raised Office Flooring System With Strong Wearability
-
15% Rate Air Flow Panel Perforated Raised Floor Tiles SGS Standard 600 X 600 mm
-
FS800 Computer Room Anti Static PVC Flooring , Elevated Floor Tiles
-
FS800 Computer Room Raised Floor Tiles Ceramic Finished 600 X 600 mm
-
Custom Indoor Aluminium Flooring Sheets , Elevated Floor Tiles SGS Standard
-
Steel Structure Aluminum Floor Tiles Corrosion Proof High Mechanical Strength
Product Details
| Brand Name | Tianchi | Place of Origin | China | |
| Model Number | TC 2 |
Product Description
Certification:SGS
Corrosion Proof HPL Data Center Raised Floor Tiles , Raised Access Floor Panels
Specifications:
FS800 HPL Finish Raised Floor For Computer Room With Size 600*600mm
| Material 1 | Cold roll Steel |
| Material 2 | Density of concrete core 1.2 gr/cm3 |
| Material 3 | Static epoxy powder,anti-wear, anti-corrosion. |
| Material 4 | Anti-static HPL |
| Anti-static property | 1.0x106 ~ 1.0x 109ohms |
| Size | 600*600*35 mm |
| Panel dimension | within ±0.25mm |
| Panel weight: | Approx 13KG |
| Type | FS800 |
| Concentrated loading | 363 kg |
| Ultmate loading | 11250 N |
| Uniform loading | 16500 N/SQM |
| Rolling loading | 2950 N |
| Fire-proof perfprmance | Class A |
Concentrated Load
|
Type (TianChi) |
Size (MM) |
Fire Proof |
Concentrated Load |
Ultimated Load (N) |
Uniform Load(N/m2) |
Impact Load(N) |
RollingLoad(N) | |||
| LB | N | KG | 10 | 10000 | ||||||
|
TC450 |
600*600*30 |
A |
≥440 |
≥1960 |
≥200 |
≥5880 |
≥9720 |
≥295 |
1958 |
1566 |
|
TC650 |
600*600*35 |
A |
≥662 |
≥2950 |
≥301 |
≥8850 |
≥12500 |
≥445 |
2946 |
2356 |
|
TC800 |
600*600*35 |
A |
≥800 |
≥3550 |
≥363 |
≥11250 |
≥16100 |
≥536 |
3560 |
2670 |
|
TC1000 |
600*600*35 |
A |
≥1000 |
≥4450 |
≥453 |
≥13350 |
≥23000 |
≥670 |
4450 |
3560 |
|
TC1250 |
600*600*35 |
A |
≥1250 |
≥5560 |
≥567 |
≥16680 |
≥33000 |
≥780 |
5560 |
4450 |
|
TC1500 |
600*600*35 |
A |
≥1500 |
≥6660 |
≥680 |
≥26690 |
≥43000 |
≥780 |
6670 |
5560 |
| Flat head pedestal | ? |
| Steel flat head | 75*75*35mm |
| Steel pipe with screw | Diameter 18mm |
| Thickness of pipe | 1.2mm |
| Bottom plate | 95*95*2mm |
| Stringer | ? |
| Size | 570*35*20mm |
| Thickness | 1mm |
Features:
1) Steel structure, high mechanical strength, high load capacity, shock resistant
2) Electrostatic spray processed surface
3) Water, fire, dust and corrosion proof
4) High pressure plywood for an easy-to-clean anti-static material
5) Accurately sized, interchangeable, flexible, convenient to install
6) Peripheries have straight edge or hem, no adhesive tape needed
Why us:
1. Wide range of product
2. Fine Workmanship
