Product Details
Brand Name | EASTIMAFE | Place of Origin | China | |
Model Number | EI-6550DV |
Product Description
Certification:CE /Rohs/FCC/ FDA
Economical X Ray Baggage Scanner Cargo Inspection X - Ray Equipment 2 Years Warranty
Introduce of This Cargo Inspection?

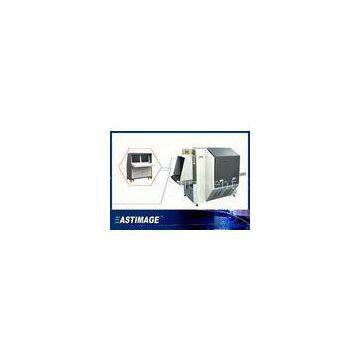

EI-6550DV is a new generation of Double View X Ray Baggage Scanner,it has two seperated X Ray Generator, one is on the bottom and another one is on the left side.You can observe horizontal and vertical images at the same time by use this machine ,to help you more easily distinguish dangerous objects.
Basic Technical specification
X-Ray Generator | ? |
Anode Voltage | 160 KV(adjustable) |
Beam Direction | From bottom & From side |
Cooling & Running Cycle | Sealed oil cooling & 100% |
X-Ray Sensor | Multi-energy L photoelectric diode array detector |
Image Processing System | ? |
Display | Color & Black and white |
Processing Function | F1/F2/F3 self-definition combination, edge enhancement, negative image, organic/inorganic separation, high level enhancement, gray scale scan |
Saves Capacity & Pull back | 100,000 images / infinite review (the previous picutures) |
Resolution | 1280×1024 |
Processing & Gray Scale | 24Bit real-time processing/8192 |
Enlargement | Up to 64X dynamic continuous zoom & panning |
Installation Data | ? |
Size | 2238 mm(L)x 1306 mm ( W)x 1415 mm(H) |
Weight | 800 KG |
Working Temperature / Humidity | 0℃~+45℃/20%~95% (non-condensing) |
Storage Temperature / Humidity | -40℃~+60℃/20%~95%(non-condensing) |
Power Supply | AC 220 V(+10%~-15%) 50±3(Hz) |
Power Consumption | About 0.50(KVA) |
System Functions
Date & Time Display, Luggage Counting, System?Working Timing, X-Ray Emission, Working Status
Display, User Management, Fault Self-diagnosis and?Maintenance Functions, Alarm Function, Urgent Stop,?Limits of Authority Management for Operator,?Self-check Power-On, Image Magnification Display,
Save and Retrieval, Image Navigation,?Single-directional Scanning, Image Recognition?Training, Network Interface,Browse, Save As, Ultra-thin?scanning, TIP, X-Autosight, High Density Alarm,?One-key Shutdown.
Optional Functions
Black Box, OTP, Energy Saving, Bi-directional Scanning.
This machine suits for Buildings where security check is very important like government office,court.If you want to know more about this model EI-6550DV, you are welcomed to contact us at any time by email or telephone call. We promise to provide you with good quality products and serviec.
