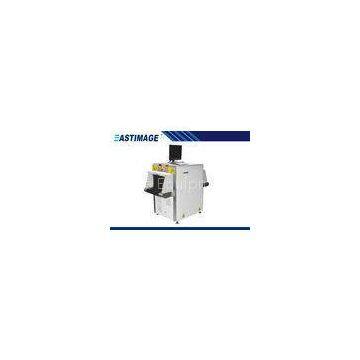

100% Sealed Oil Cooling X Ray Parcel Scanner Equipment with CE , FCC Certifications

Brand Name	EASTIMAGE		Place of Origin	China
Model Number	EI5030C

Delivery Time:7 days after payment
Certification:CE , FCC , FDA , ROHS

100% Sealed Oil Cooling X Ray Parcel Scanner Equipment with CE , FCC Certifications

General Specification:

Tunnel Size: 505(W)*305(H)mm Conveyor Speed: 0.2m/s Conveyor Max Load: 100kg Dose per Inspection: <2 μGy/h Resolution: <0.101mm Metal Wire Penetration: 6mm Steel Film Safety: Guarantee ISO1600 Film Magnifier: Partial magnifying function Brightening/dimming: Increase/Decrease brightness of image Image recurrence: Display all the the previous images and process any one of them Image restoration: Restore image to initial status Image storage: Real-time store any image and process it in operation status X-ray sensor: Multi-energy L-shaped photodiode array detector, 24bit depth Display: High-resolution 17 inch color LCD display Edge enhancement: Object contour edge is more distinct Super image enhancement: Image detail is more distinct

Applications:

Airport, Train station, Bus station, Government Building,Embassy,Conference Center,Exhibition,Hotel, Social Events,?Post office, Logistics

System Functions:

Date & Time Display, Luggage Counting, System Working Timing, X-Ray Emission, Working Status

Display, User Management, Fault Self-diagnosis and Maintenance Functions, Alarm Function, Urgent Stop, Limits of Authority Management for Operator, Self-check Power-On, Image Magnification Display,

Save and Retrieval, Image Navigation, Bi-directional Scanning, Image Recognition Training, Network

Interface,Browse, Save As, Ultra-thin scanning, TIP, X-Autosight, High Density Alarm, One-key Shutdown

Optional Functions:

Black Box, OTP, Energy Saving

Installation Data:

Size ........................1450 mm(L)x 835 mm ( W)x 1200 mm(H)

Weight ..................410 KG

Working Temperature / Humidity.......0℃～+45℃／20%～95% (non-condensing)

Storage Temperature / Humidity........-40℃～+60℃／20%～95% (non-condensing)

Power Supply..........AC 220 V(+10%~-15%) 50±3(Hz)

Power Consumption......About 0.41(KVA)
