10mW Low Cost Wireless RF Module 420MHz-440MHz with SPI IIC Interface for 300m
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Small Size 10mW 420MHz-440MHz RF Wireless Transmitter Module with SPI IIC Interface
-
Long Range Radio Modem VHF UHF with RS-232 for Voice Communication
-
10W High Speed Data Radio FC-206 Friendcom Radio modem Manufacturer
-
FC-301D 5 Watt Narrow band RF Data Modem with GMSK for Data Collection
-
Long Range VHF Wireless Data Transceiver FSK with Programmable 1W-5W Output Power
-
GMSK 5W 16 Channels High Speed Wireless Radio Modem / UHF Data Modem
Product Details
| Brand Name | Friendcom | Place of Origin | China | |
| Model Number | FC-RF103 |
Product Description
Certification:FCC

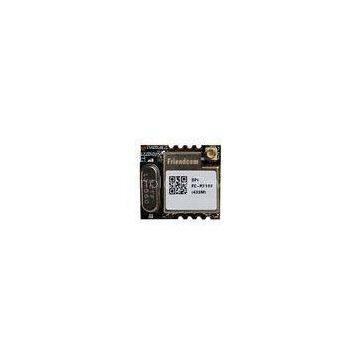

10mW Low Power Wireless RF Module FC-RF103 with SPI IIC Interface for 300m
Abstract
FC-RF103 is a low-cost, compact, low power RF TX module. Its modulation method can be either FSK or ASK. It adopts crystal-based high performance RFIC as its core. Its transmit frequency can be programmed from 420 MHZ to 440MHZ, It can work in wide voltage range with high frequency stability. It usually works with RF RX module FC-RF104.
Features
Low-cost and small size
ISM Band, 433Mhz
Easy to work with PT2262
Max 20kbps
Fully PC Programmable
FSK/ASK optional
Specifications
| Items | Parameters |
| Work frequency | SPI mode: 420MHz~440MHz programmable |
| ? | Fixed frequency mode: 433.92MHz |
| Work voltage | DC2.2V--3.6V, typical 3V |
| Transmit current | 16mA@10dbm |
| Sleep current | <1uA |
| RF power | Max 10dBm |
| RF Data rate | Max 20kbps |
| Modulation | FSK / ASK |
| Program interfaces | SPI digital interface |
| Dimension | 17.6×16.1×5mm(L×W×H ) |
| Work Temperature | -40°C--+85°C |
| Storage Temperature | -55°C--+125°C |
Applications
? Intelligent home control system
? Wireless RFID tag
? Wireless sensor
? Wireless toy
? Wireless remote control
? TPM (Tire Pressure Monitor)
Competitive Advantage
We cooperate closely with several domestic and overseas first-class universities, research institutions and laboratories, to consolidate and enhance our core competencies, to strive to be the leading supplier of wireless solutions.
Accessory
