Home > Products > Indoor LED Video Wall > Full Hd 55inch 4x6 Indoor LED Video Wall 5.3mm For Meeting Rooms

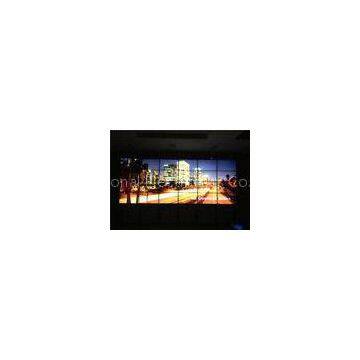

Full Hd 55inch 4x6 Indoor LED Video Wall 5.3mm For Meeting Rooms

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JB		Place of Origin	China
Model Number	JB/H38-LG

Product Description

Delivery Time:3-10 working days after received your payment
Certification:CE/ROHS/FCC

Lg 4x6 Full Hd 55inch Lcd Video Wall, Led Advertising Screen With 5.3mm Narrow Bezel

Description:

55" LG video wall is one of Samsung most popular ultra narrow bezel lcd video wall panels. With 5.3mm

ultra narrow bezel, LED backlight and FHD 1080P resolution, it can be widly used in below fields:

Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and

Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public

Installations, Exhibition and show center, Live show,Rental and advertising

Center,Museums,Church,Transportation and Mass Info Display systems.The splicing picture combination,

can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial

,Metro,shopping mall,supermarket,Public.

Features :

Supports 10 x 10 pieces panels splice

Easy maintenance, if one unit is going bad, only replace it with a new one

Wireless control: common solution

The PC needs to connect LCD video wall with RS232 cable

And distance should be within 10m

The longer the cable, the weaker the signal

Now wireless control no need to worry about how to hide the cable between the PC and the distance is within Wi-Fi range

The new solution also supports multiple PCs to control LCD video wall

Supports multiple user management

Comes with 2xDVI inputs and supports two full HD signals at the same time. The common solution with one DVI input only, it requires a PC of matrix if two DVI inputs needed for the project, then the cost will increased

Supports setup screen timer and memory function after cutting off power

Scene management: users can save and preset the scene that want to display and can setup the scene interval in turn time

Accessories: RS232 convertor, RJ45 convertor, VGA cable, RJ45 cable, power cable, remote controller and software

Branded LG/SAMSUNG/AUO industrial panel, supports 24 hours continuously playing

Full hardware structure, no CPU and operating system

Easy installation, only fix them together by metal bracket

Easy to operating, can operate system together with software flexible, we offer free software

Supports RS-232 serial ports remote control

Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232

Images are displayed smoothly and naturally without time delay and tailing and image quality is quite smooth

technological Parameters:

Model No.	JB/H53-LG
Panel Size	55"
Max resolution	1920X1080
Screen Size [inch/cm]	55 inch
Panel Technology	S-PVA TFT with direct white LED backlights
Aspect Ratio	16:9
Color	8Bit,16.7M
Visual Angle (H/V)	178°/178°
Response Time	<=10ms
Life(hrs)	>60,000(hrs)
Input and output	?
DVI	1
HDMI	1
D15-RGB Input(VGA)	1
RJ45	2
Composit video input(AV)	2(2xBNC)
Composit video input	2(2xBNC)
Split screen	Support picture in picture(PIP/POP/PAP)
Power supply	AC100V~240V
Maximum power consumption	230W
Standby comsuption	<=3W
Temperature	?
Working temperature	0℃~50℃
Working Humidity	20%~80%
Dimension	121.5*68.6cm

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available. OEM&ODM are welcome.

4. Exclusive, considerate and unique solution can be provided to our customers by our well-trained and

professional engineers and staffs.

5. Special discount and protection of sales area provided to our distributor.

6. 1 year warranty for the products.

Trade terms:

1. Price: Price coveres cost of controller &software,based on EXW Factory Price term

2. Lead time:within
