CATV Network SC APC Fiber Optic Patch Cord with PVC or LSZH Jacket , High Return Loss

FOB Price

USD $4 - $5 / Meter

1 Meter(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

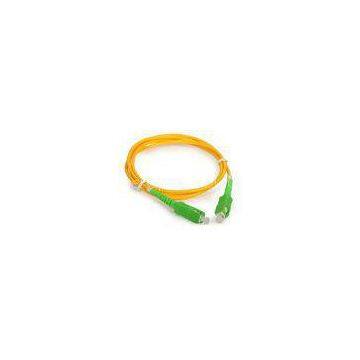

CATV Network SC APC Fiber Optic Patch Cord with PVC or LSZH Jacket , High Return Loss

?
?
Optical?Fiber?Patch?Cord,?SC/APC?to?SC/APC?connector,?G652D,9/125um,?single?core,?OD:?3.0MM,PVC?or?LSZH?Jacket?is?optional,
Length:3M?(The?length?of?other?requirements?canbe?provide).

Quick?Details:

??Type:?SC,?APC?fiber?patch?cord ? Mode:?Single?mode ? Ferrule?End-face:?APC ? Cable?core:?Simplex,?Duplex ? Cable?diameter:?0.9mm,?2.0mm,?3.0mm ? Cable?color:?Green

Features:
??? ? 1. ?Insertion?Loss:?APC<0.3dB?.
????? 2.? Return?Loss:?SM:?PC>45dB.
????? 3.? Repeatability:?≤?0.1dB.
????? 4.? Exchange:?≤0.2dB.
????? 5.? Push-pull?Performance:≥1000?Cycle.
????? 6.? Operation?Temperature:?-40~+80°C.

Applications:

??Optical?access?network ??Data?processing?networks ? Telecommunication?networks ? Fiber?optic?communication?networks ? CATV,?LAN,?WAN,?Test?&Measurement

Specification:

Parameter	Single?Mode	Multi?Mode
Basic	Fiber?connector	FC,?SC,?LC,?ST,?MU,?MTRJ,?MPO,?E2000
Ferrule?End-face	PC	UPC	APC	UPC
Insertion?Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
Return?Loss	≥50dB	≥55dB	≥60dB	≥35dB
Ceramic?Ferrule ?Specification	125.5um?concentricity? deviations:<=1um	127um?concentricity? deviations:<=3um
Suitable?Fiber	9/125um	50/125um,62.5/125um
End-face?Geometry	Radius?of?Curvature	7~25mm	5~12mm	N/A
Fiber?Protrusion	≤50nm	≤100nm	N/A
Fiber?Under?Cut	≤100nm	≤100nm	N/A
Apex?offset	≤50um
Mechanical	Exchangeability	≤0.2dB
Salt?Spray	≤0.1dB
Drop	≤0.2dB(1.5M,?5?drops)
Vibration	IL?≤0.2dB(550Hz,?1.5mm)
Repeatability	≤?0.1dB(1000?times)
Durability	>?1000?times
Operating? Temperature	-40°C?~?+85°C

?
?
?
ReliabilityText?Condition?of?Fiber?Optic?Patch?Cord?
?

Item	Text?Condition	Text?Value
Optical	Insertion?Loss	1.3um?LED?Laser	≤0.2dB
Return?Loss	1.3um?LED?Laser	≥50dB
Mechanized	Exchange	Interchangeable?Random	<0.2dB
Vibration	5~2000Hz,1.5mm?Amplitude	<0.1dB
Push-pull	>1000?Cycle	<0.1dB
Environments	High?Temperature?Storage	+85°C?For?100h	<0.2dB
Low?Temperature?Storage	-40°C?For?100h
