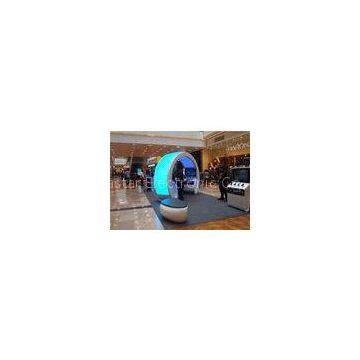

High Brightness P10 3 Color Curve LED screen For Shopping Mall

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

?
High Brightness P10 3 Color Curve LED screen For Shopping Mall
?
Feature:
?
SMD3535 for outdoor usage, high brightness with bigger viewing angle;
IP65 waterproof, front and rear side;
Controlling box is replaceable, press the side button to take it out and insert a new one quickly;
?Aluminum case to ensure fast heat elimination, no fans and no noise;
?Simple but unique cabinet\'s design, light & thin; side lock system with quick and seamless installation.

?
Specification:

Model:	RK53S	RK6S	RK8S	RK10S	RK10S(DIP)
Pixel Pitch (mm):	5.33	6.67	8	10	10
Physical Density (dot/m2):	35,156	22,500	15,625	10,000	10,000
LED Configuration:	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type:	SMD3030	SMD3535	SMD3535	SMD3535	DIP346
Module Size (mm x mm):	320*320	320*320	320*320	320*320	320*320
Module Resolution (PX x PX):	60*60	48*48	40*40	32*32	32*32
Module Power Consumption (W):	70	70	70	70	70
Drive Mode:	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive
Horizontal Viewing Angle (Deg):	140	140	140	140	140
Vertical Viewing Angle (Deg):	140	140	140	140	140
Brightness (cd/m2):	4,500	4,500	4,500	5,300	8,000
Grey Scale:	14	14	14	14	14
Refresh Rate (Hz):	＞960	＞960	＞960	＞960	＞960
Cabinet Resolution (PX x PX):	120*120	96*96	80*80	64*64	64*64
Cabinet Max Power Consumption (W):	300	300	300	300	300
Cabinet Average Power Consumption (W):	120	120	120	120	120
Cabinet Size (mm x mm):	640*640	640*640	640*640	640*640	640*640
Cabinet Weight (Kg):	18	16.5	17	17	17
Cabinet Thickness (mm):	89	88	88	88	88
Cabinet Material:	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Color (M):	>16.7	>16.7	>16.7	>16.7	>16.7
Input Voltage (V):	110-240VAC	110-240VAC	110-240VAC	110-240VAC	110-240VAC
Refresh Frame Frequency (Hz):	50/60	50/60	50/60	50/60	50/60
Protection Level:	IP65	IP65	IP65	IP65	IP65
Working Environment:	outdoor	outdoor	outdoor	outdoor	outdoor
Working Temperature (℃):	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°
Operation humidity (RH):	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Certificates:	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE

?

High refresh rate:
Delicate and smooth picture at high speed shutter, without ripple or flicker; vivid video to restore true picture;
Visual fresh rate over 3000hz, high performance led display;
High refresh rate with stable video play and less flash;
Low fresh rate results in horizontal stripes with camera, and also damage to eyes for too much flash lights.
?
High grey scale:
Rich color leave with low brightness, grad
