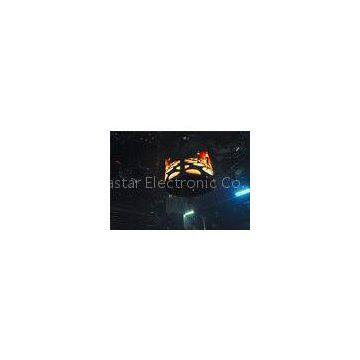

SMD3535 P10 Outdoor Curved LED Screen , LED Digital Billboards

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

?
SMD3535 P10 Outdoor Curved LED Screen , LED Digital Billboards
?
Feature:

SMD3535 for outdoor usage, high brightness with bigger viewing angle;IP65 waterproof, front and rear side;Controlling box is replaceable, press the side button to take it out and insert a new one quickly;Aluminum case to ensure fast heat elimination, no fans and no noise;Simple but unique cabinet\'s design, light & thin; side lock system with quick and seamless installation.

?
Specification:
?

Model:	RK53S	RK6S	RK8S	RK10S	RK10S(DIP)
Pixel Pitch (mm):	5.33	6.67	8	10	10
Physical Density (dot/m2):	35,156	22,500	15,625	10,000	10,000
LED Configuration:	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type:	SMD3030	SMD3535	SMD3535	SMD3535	DIP346
Module Size (mm x mm):	320*320	320*320	320*320	320*320	320*320
Module Resolution (PX x PX):	60*60	48*48	40*40	32*32	32*32
Module Power Consumption (W):	70	70	70	70	70
Drive Mode:	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive
Horizontal Viewing Angle (Deg):	140	140	140	140	140
Vertical Viewing Angle (Deg):	140	140	140	140	140
Brightness (cd/m2):	4,500	4,500	4,500	5,300	8,000
Grey Scale:	14	14	14	14	14
Refresh Rate (Hz):	＞960	＞960	＞960	＞960	＞960
Cabinet Resolution (PX x PX):	120*120	96*96	80*80	64*64	64*64
Cabinet Max Power Consumption (W):	300	300	300	300	300
Cabinet Average Power Consumption (W):	120	120	120	120	120
Cabinet Size (mm x mm):	640*640	640*640	640*640	640*640	640*640
Cabinet Weight (Kg):	18	16.5	17	17	17
Cabinet Thickness (mm):	89	88	88	88	88
Cabinet Material:	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Color (M):	>16.7	>16.7	>16.7	>16.7	>16.7
Input Voltage (V):	110-240VAC	110-240VAC	110-240VAC	110-240VAC	110-240VAC
Refresh Frame Frequency (Hz):	50/60	50/60	50/60	50/60	50/60
Protection Level:	IP65	IP65	IP65	IP65	IP65
Working Environment:	outdoor	outdoor	outdoor	outdoor	outdoor
Working Temperature (℃):	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°	\"-20°- +40°
Operation humidity (RH):	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Certificates:	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE	TUV-EMC,CE

?

EASTAR Brand Advantage
EASTAR has been studied in LED Industry for nearly 10 years since it was founded, and it has mature market in Indoor LED Advertising Display, Outdoor LED Advertising Display, Stage LED Rental Display, LED Stadium Display, products has been sold around 5 continents over 100 countries and districts, creates many classical cases, ESDLUMEN brand has been spoken highly of by the clients.
?
EASTAR? LED Industry? Advantages
10 years Brand precipitation
Strong ability of research and Development and customization
Product quality and testing
4S comprehensive service
?
EASTAR Technology Advantages
?
1. Brightness adjustment technology
To adjust different weather, to make the screen has the best show effect, our company led screen electronic specially designed the brightness adjusting device level 16.Ensure the whole screen can has the best showing effective in different environment.
?
2. Strong convective heat removal system
LED screen throw off large quantity hot ,to ensure the total screen system can s
