90kw / 113kva Prime Power Slient Diesel Generator Set with Cummins Engine

FOB Price

US$ 4 - 5 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

Technical Specifications :?

Genset	Prime Power (kw/kva)	90 / 113
Standby Power (kw/kva)	100 /?125
Voltage Recovery Time	≤1S
Rated Current (A)	162
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Fuel Tank Capacity(L)	180
Engine	Engine brand	Cummins
Output Power (kw)	106
Cylinder No. & Config.	4, in-line
Combustion System	direct injection
Compression Ratio	17.0:1
Displacement (L)	5.9
Bore X Stroke (mm)	102*120
Engine Speed (r/min)	1500
Speed Governing	Mechanical
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Protection Grade	IP23

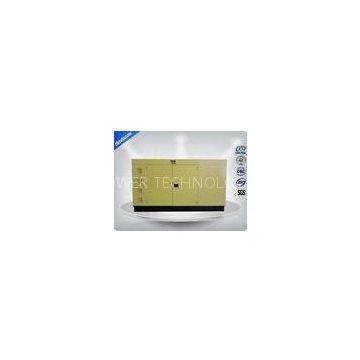

Our Picture :

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Our advantages :
1.Inspection

Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

??
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.?
2) During the guarantee period, the spare-parts will
