0.7 Mpa Air Pressure EPS Sandwich Wall Panel Roll Forming Machine With Mitsubishi PLC & Converter
USD $4 - $5
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Building Material Corrugated Roof Sheet Making Machine Galvanized Steel Sheet
-
Automatic Steel C Z Purline Roll Forming Machine Quick Change
-
Small Corrugated Sheet Metal Roof Roll Forming Machine / Roof Panel Making Machine
-
Galvanized Steel Roof Roll Forming Machine Roofing Sheet Production Machines
-
Wave Shape Roof Sheet Roll Forming Machine European Standard
-
16 - 26 Stations Sheet Metal Roll Forming Machines with High Grade 45 # Steel
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
0.7 Mpa?Air Pressure?EPS Sandwich Wall Panel??Roll Forming Machine? With ?Mitsubishi PLC & Converter
Brief introduction ?of?EPS sandwich panel machinery
Esp sandwich panel machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material.
Due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.
In order to satisfy various customer requirements, we design and manufacture EPS sandwich panel lines in different specs, models and configurations.
Main components
EPS sandwich panel machine mainly consists of uncoiler, roll forming machine, laminating system, cutting device, electric control system, and pneumatic system.
Technical specification
1. EPS sandwich panel spec
Panel thickness:
Mini thickness 50mm (wall panel)
Max. Thickness 150mm(exclude corrugated sandwich panel)
2. Steel sheet spec
Thickness 0.4-0.7mm color steel sheet
Width 1250mm (we can design according to buyer`s requirement)
Max. Coil weight: 5 tons
Inner dia. Of coil: 508mm
3. Whole line spec
Whole line dimension: About 35000mm × 2500mm × 3000mm
Total weight about: 20t
Working speed: About 3-5m/min (adjustable)
The output: 1500m2-2000m2/8hour
Control mode: PLC and converter
Total power: About 28kw (as per final designing)
Power required: 380v/3phase/50Hz or as per customer\'s requirement.
Air pressure: 0.7mpa (for buyer to prepare)
Suitable working temperature: About 25 degree
Quick Details
Model: EPS?
Certification: ISO 9001; 2008,?CE,?SGS
Condition: New
Customized: Customized
Power Source: Electric
Automatic Grade: Automatic
Certificate: CE, ISO
Machine Color: Made-to-Order
Brand: Shenghong?
Control Mode: Mitsubishi PLC & Converter
Place of Origin: China
Whole Line Dimensio: About 35 × 2.5 × 3m
Method: Roll Forming and Pressing
Processing: Roll Forming and Pressing
Product: Sandwich Panels
Brick Raw Material: Steel and EPS
Export Markets: Global
Get Free
\"Send\" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!

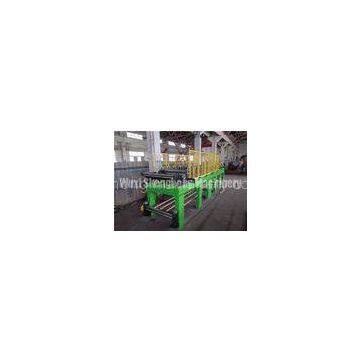

Machinery Photos
?
?
?
