Home > Products > Paper Die Cutting Machine > High - Precision Cutting Machines For Paper , Cutting Paper Machine

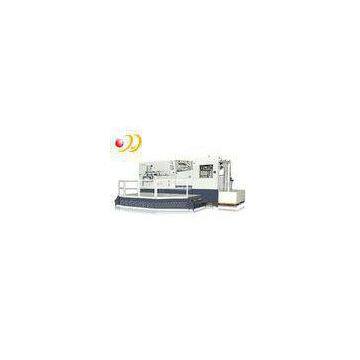

High - Precision Cutting Machines For Paper , Cutting Paper Machine
US$ 4 - 5
1 (Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Manual Water - Base Paper Film Laminating Machine For Wall Calendar
-
8.5kw Automatic School Film Laminator Machine For Glueless Film
-
High Speed Hydraulic Film Laminating Machine For Thermal Film
-
Fully Automatic Film Laminating Machine With Programmable Control
-
Semi - Auto Plastic Lamination Machine , Small Card Laminator Machine
-
PVC Sheet Document Lamination Machine High Efficiency For Acrylic
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
High - Precision Cutting Machines For Paper , Cutting Paper Machine
Specifications :
| Die-cutting ways ? | flat to flat (with upper platen fixed and lower platen movable) |
| Max. Paper Size ?? | 920×670mm |
| Min. Paper Size? | 360×320mm |
| Max. die-cutting Size? | 910×660mm |
| Min gripping edge | 6mm |
| Max.?Die-cutting Pressure? | 250T |
| Paper Processed? | 80--2000 g/m2 |
| Cardboard?Corrugated paper ?? | up to 5mm |
| Die-cutting precision | ±0.1mm |
| Max.?Die-cutting Speed ? | 8000sheets/h |
| Max. Height of Feeding Pile? | 1380mm |
| Max. Height of Delivery Pile | 1160mm |
| Power of main motor | 7.5KW |
| Total Power ? | 12.1KW? |
| Weight? | 11T |
| Dimensions | 4500×1870×2000mm? |
Description :
YH-920 Automatic Die Cutting and Creasing Machines are key equipments applying to die-cutting, creasing, and cold embossing for cartons, paper boxes and paper labels, etc. High-precision intermittent mechanism, pneumatic chase locking mechanism, air clutch, overload protector and special driving device, registration mechanism ensure smooth feeding, accurate registering and order delivery.
Computer control and man-machine interface are adopted to display working state and solution for accident occurs automatically.
Imported control mechanism and key parts with fine assembly ensure stable pressure accuracy registration and safety.
