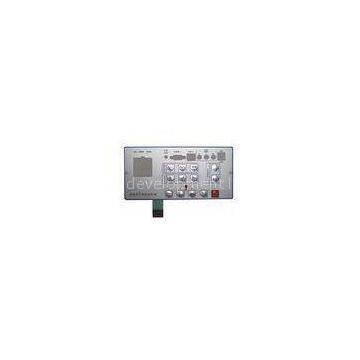

3M Self Adhesive Graphic Waterproof Membrane Switch With Stainless Steel Domes
USD $4 - $5
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Waterproof Membrane Switch Keypad 0.05-1.0mm Thickness
-
Thin Flexible PET Membrane Switch Keyboard With Transparent Window
-
Customized Waterproof Embossed Metal Dome Membrane Switch With CMYK Printing
-
Black 3M467 / 3M468 Flat PET Membrane Switch with Ribbon Circuit
-
Zinc Alloy / Brass Customized Name Plates , 0.2~1.0mm Thickness
-
3M 467MP / 3M 468MP Aluminum Flat Membrane Switches Key Pad
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
3M Self-adhesive Waterproof Membrane Switch , ?Multiple Domes Keyboards
Specifications
Waterproof Membrane Switch?
1. Material: PET,?PC , Autotex F200, F150, V207, per customers\' requirement?
2. UV resistance / Waterproof?
3. Dust-proof, water-proof, gas-proof, anti-corrosion
|
Electronic Characteristic
|
<35V ( DC )?? <100mA?? 1W
|
Life Expectancy
|
flat type ≥ 500 million times, tactile type: ≥ 100 million times
|
|
Contact Resistance
|
10Ω--500Ω (According the trace length and materials to confirm)
|
Operation Temperature
|
-40 °c ~ + 80 °c
|
|
Insulating Impedance
|
>100MΩ 250V DC
|
Stock Temperature
|
-40 °c ~ + 85 °c
|
|
Resistance of the wire
|
<1 Ω/cm?? width 1.27mm
|
Humidity
|
+ 40 °c?? 90 % ~ 95%?? 240 hour
|
|
Operation Force
|
flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)
|
Switch stroke
|
flat type 0.1-0.5mm, tactile type 0.6-1.5mm
|
Application
TV remote control.
Air conditioner control panel
Microwave oven panel
Medical (Diagnostic and Therapeutic)
Exercise Equipment
Test and Measurement
Automotive
Industrial Automation Equipment
Home Therapy and Patient Monitoring
Type of Switch
Non tactile
graphics
Tactile with stainless steel domes
Tactile with poly domes on the circuit
Notice:?We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.
