Full - hydraulic two-line mechanism lhd underground mining loader
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Underground Mining Vehicles +/-42 Turning angle With scissor lifting platform
-
Load Haul Dump Truck Under Mining Loader LHD Mining Load for Railways
-
Professional 16 MPa pressure Underground Mining Loader LHD Machine
-
Load Haul Dump Loader Diesel LHD Machine For Underground Mining
-
Diesel LHD Machine Total loaded weight 16500kg For Poor Working Condition ACY-2
-
Manual Control LHD Machine For Construction Of Railings / Highways
Product Details
| Brand Name | Sinome | Place of Origin | China | |
| Model Number | ATY-5A |
Product Description
Certification:KA
Full - hydraulic two-line mechanism lhd underground mining loader?

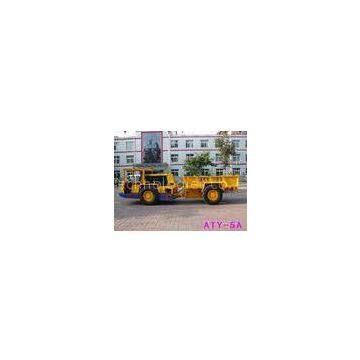

ATY-5A UG explosive transport vehicle being made of the general chassis and fixed compartment is suit for detonator and materiel transported.The machine employs DEUTZ air-cooled low-pollution engine, and is deployed with platinum dry-type exhaust cleaner and silencer provided by ECS.The hydraulic torque converter , power-shift transmission and driving axle of the transmission system are provided by DANA. Service braking system make use of full-hydraulic two-line mechanism. The major components of hydraulics system mainly select Rexroth, S-D-D, and other world-renowned company\'s products which is reliable and easy to operate.
The different configure in working part of the ATY-5A’s general chassis can make of kinds of assistantvehicle such as the transporting truck ,tanker truck etc.
|
Weights |
Operating weight |
6,860kg |
|
Total loaded weight |
11,860kg |
|
|
Operating capability |
Maximum tractive effort |
70kN |
|
Maximum grade ability |
6.7km/h fully loaded at 15% |
|
|
Box std |
2.5m3 |
|
|
Speed |
1st Gear |
5.0km/h |
|
2nd Gear |
10.9km/h |
|
|
3rd Gear |
24.5km/h |
|
|
Engine |
Diesel engine |
DEUTZ F6L914 |
|
Output |
79kw/2300rpm |
|
|
Maximum torque |
385Nm/1500rpm |
|
|
Driver cab |
Meet American SAE Heavy duty Canopy ROPS/FOPS Standard |
|
|
Transmission system |
Torque converter |
DANA CL270 |
|
Transmission |
DANA RT20000 |
|
|
Axles |
DANA 112 |
|
|
Tires |
10.00-20-14 L-4S TT |
|
|
Electrical system |
System voltage |
DC24V |
|
Alternator |
28V/55A |
|
|
Starter motor |
4.0kW/24V |
|
|
Lights |
2 Front,2 Rear |
